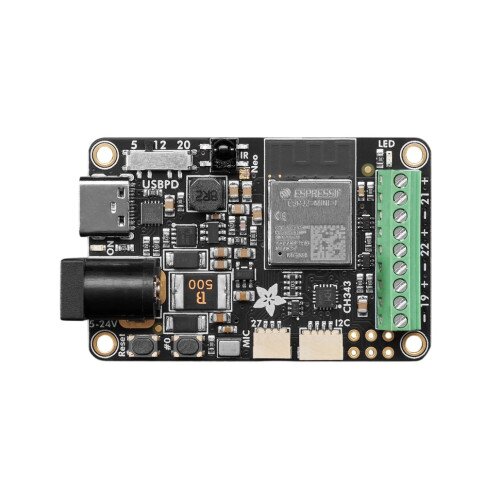

Buy Adafruit Sparkle Motion - All-In-One WLED and xLights Board Now

• Power via USB Type C PD with a slide switch that selects between 5, 12 and 20V (24V pixels can usually run fine at 20V) OR via 2.1mm DC jack
• Low forward-voltage diodes so its good for up to 5A from either
• 5 Amp fuse to protect from over-current drive
• ESP32 mini module with built in or optionally wFL antenna port (the classic '32 has broad support even if we'd prefer the 'S2 or 'S3)
• Three output signal terminal block sets with power and ground for each - they'll be level shifted to 5V.
• 6 GPIO breakout pads with a fourth level-shifted ouput, and 3 more GPIO plus power and ground.
• Built-in I2S microphone
• Built-in IR receiver
• Stemma QT I2C port to connect external sensors/OLED/etc
• Separate analog/digital input JST port for analog input, potentiometer, microphone or external IR receiver
• Compact enough you can use it for wearable projects - 1.3"x1.75" / 33mm x 45mm size with mounting holes

In the Box

• Adafruit Sparkle Motion - All-In-One WLED and xLights Board
