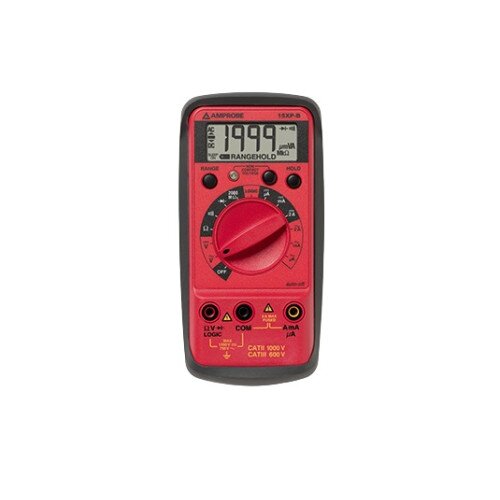

Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection
Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection Display Gallery Item 1
Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection - 2 Display Gallery Item 2
Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection - 3 Display Gallery Item 3

Buy Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection Now

By: Amprobe

Model: 3534088

Sku: 7N0FNCMB6O

Be the first to review this product

Sign up for price alert

AED 919

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Designed for electronics engineers, technicians and field service
  • Autoranging display for faster measurements
  • TTL logic test for digital circuits
  • Integrated tilt stand for easy bench use
  • Diode test for component level troubleshooting
  • Data hold freezes display to “hold” measurement reading
  • 600 V AC / 600 V DC—highest voltage rating in this size of meter
  • Special 2000 MΩ measurement range
  • DC Voltage: 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
  • AC Voltage: 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
  • Current AC/DC: 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A
  • Resistance: 200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ, 2000 MΩ
  • VolTect Non-Contact Voltage Detection: 70 V AC → 600 V AC (50 Hz → 60 Hz)
  • Logic test: TTL, 20 MHz
  • Display: 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
  • Polarity: Automatic, positive implied, negative polarity indication
  • Over-range: (OL) or (-OL) is displayed
  • Zero: Automatic
  • Low battery indication: The + is displayed when the battery voltage drops below the operating level
  • Auto power off: Approx. 10 minutes
  • Measurement rate: 2 times per second, nominal
  • Operating environment: 0 °C to 50 °C at (70 % R.H.
  • Accuracy: Stated accuracy at 23 °C ± 5 °C, (75 % relative humidity
  • Power: Single standard 9 volt battery, NEDA 1604, JIS 006P, IEC 6F22
  • DC Volt ranges: 200 mV, 2 V, 20 V, 200 V, 600 V/ Accuracy: ± (0.5 % rdg + 1 dgt)
  • AC Volts (45 Hz to 500 Hz) ranges: 200 mV 2 V, 20 V, 200 V, 600 V/ Accuracy: ± (1.5 % rdg + 5 dgts)
  • DC Current ranges: 200 µA, 2000 µA, 20 mA, 200 mA, Accuracy: ± (1.0 % rdg + 2 dgt)/ 2 A, Accuracy ± (2.0 % rdg + 3 dgts)
  • AC Current (45 Hz to 500 Hz) ranges: 200 µA, 2000 µA, 20 mA, 200 mA, Accuracy: ± (1.5 % rdg + 5 dgts)/ 2 A, Accuracy ± (2.5 % rdg + 5 dgts)
  • Resistance: 200 Ω , 2 kΩ , 20 kΩ , 200 kΩ , 2 MΩ ± (1.0 % rdg + 4 dgts)
  • Resistance: 2000 MO ± {5.0 % (rdg -10 dgts) +20 dgt}
  • Continuity audible indication: Less than 25 Ω
  • Diode test current: 1.2 mA (approximate) ±(1.5 % rdg + 3 dgts)
  • Logic test: TTL
  • Non-contact voltage indicator: Sense voltage 70 V to 600 V AC (50 Hz to 60 Hz) beeper chirps and big bright red LED comes on, works on all ranges
Quantity:
  • Add to Wishlist
  • Add to Compare

The Amprobe 15XP-B is the right choice for electronics engineers and field service technicians, featuring TTL logic test for digital circuits, diode test for component level troubleshooting, a special 2000 MΩ measurement range, and an integrated tilt stand for convenience on the bench.

In the Box

  • Amprobe 15XP-B Digital Multimeter VolTect Non-Contact Voltage Detection
  • Pair Of Test Leads (TL245A)
  • Fuse 2 A/1000 V (P/N FP200)
  • 9 V Battery (Installed)
  • Magne-Grip Holster With Magnetic Hanging Strap
