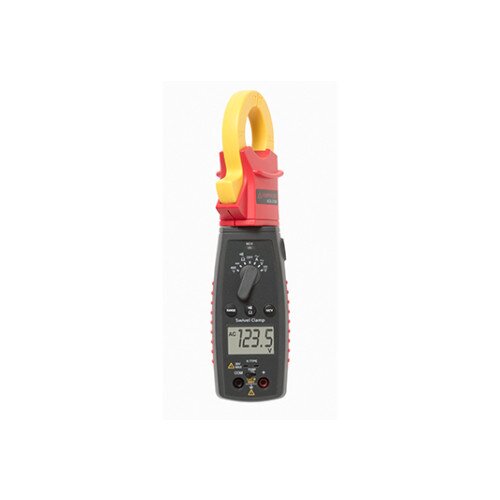

Amprobe ACD-21SW Swivel Clamp Meter With Temperature And VolTect
Amprobe ACD-21SW Swivel Clamp Meter With Temperature And VolTect Display Gallery Item 1

Buy Amprobe ACD-21SW Swivel Clamp Meter With Temperature And VolTect Now

By: Amprobe

Model: ACD-21SW

Sku: IYNDMOH7O2

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • AC Current: 40.00 A , 400.0 A, +/- (2.0 % rdg + 10 dgts) 50 Hz → 60 Hz
  • AC Voltage: 4.000 V, 40.00 V, 400.0 V, 600.0 V, +/- (1.2% rdg + 8 dgts) → 400 V Hz
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600.0 V, +/- (0.5% rdg + 2 dgts)
  • Resistance: 400.0 ?, 4.000 k?, 40.00 k?, 400.0 k?, 4.000 M?, 40.00 M?, +/- (1.0% rdg + 4 dgts) at 400 ? → 400 k? ranges
  • Capacitance: 4.000 µF, 40.00 µF, 400.0 µF, 4,000 µF
  • Temperature: -30 °F → 400 °F
  • VolTect non-contact voltage detection: 70 V → 600 VAC (50 Hz → 60 Hz)
  • Polarity: Automatic, positive implied, negative polarityindication
  • Overrange: (OL) or (-OL) is displayed
  • Measurement rate: 2 times per second, nominal
  • Accuracy: Stated accuracy at 74°F ±8°F, <75% relativehumidity
  • Jaw opening capability: 30mm (1.18 in) conductor.
  • Power: 1.5 volt battery x2, R03/SIZE AAA.
  • Continuity range: 400O
  • Diode test current: 1.2mA (approximate)
  • Non-contact voltage indicator: Sense voltage 70V to 600VAC (50Hz ~ 60Hz) beeper chirps and big bright red LED comes on, works when meter dial is on any ranges.
  • 180 degree rotating head for the perfect display viewing
  • Advanced VoltTect non-contact voltage detection
  • Slim jaw design with one hand operation
  • Measures AC current up to 400 AC A, AC/DC voltage up to 600 V, resistance and capacitance
  • Audible continuity
  • Temperature measurement
  • Audible continuity
  • Auto power off
  • Auto and manual ranging respectively for quick checks and precise measurements
  • Data hold
  • Accommodates conductors up to 1.18 (30 mm) in diameter
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Amprobe’s new ACD-21SW Swivel Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.

Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature rich, measuring AC/DC currents, voltage, resistance and capacitance as well as CAT III 600 V safety ratings make this clamp on meter something you should swivel to see.

In the Box

  • Amprobe ACD-21SW Swivel Clamp Meter With Temperature And VolTect
  • Test leads
  • Battery
  • Carrying case
  • Type-K thermocouple
