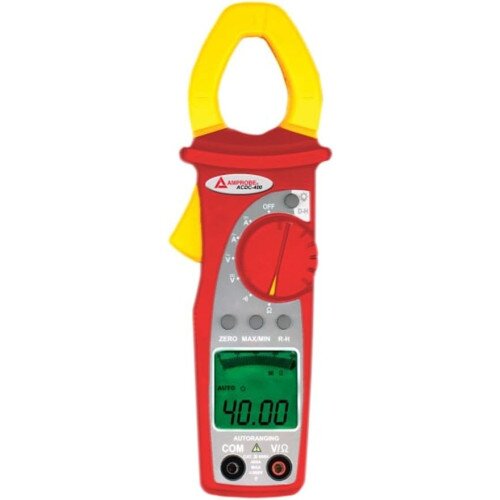

Amprobe ACDC-400 AC/DC 400 A Digital Clamp Multimeter
Amprobe ACDC-400 AC/DC 400 A Digital Clamp Multimeter Display Gallery Item 1

Amprobe ACDC-400 AC/DC 400 A Digital Clamp Multimeter Available Now

By: Amprobe

Model: ACDC-400

Sku: Q6KWX7YFVA

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Measures AC/DC current to 400 A and AC/DC voltage to 600 V, and resistance
  • Continuity beeper quickly identifies shorts and opens
  • Data hold captures the reading on the display for further analysis
  • MIN/MAX recording records min/max measurements over time to show voltage fluctuations
  • Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
  • Combines user friendly features such as a large, easy to read backlit digital and analog display, auto or manual range selection, and low battery indicator
  • Accommodates conductors up to 1.18″ (30 mm) in diameter
  • AC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • AC Current: 40.00 A, 400.0 A
  • DC Current: 400 A
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
  • Accommodates conductors: Up to 1.18″ (30 mm) in diameter
  • DC Voltage: 400.0 mV/4.000/40.00/400.0/600 V ±(1.0% Rdg + 2 LSD)
  • AC Voltage: 400.0 mV ±(1.0%Rdg + 50 LSD) 4.000/40.00/400.0/600 V ±(1.2% Rdg + 3 LSD)
  • AC/DC Current: 40.00/400.0 A ±(2% Rdg + 10 LSD) @50 – 60 Hz
  • Resistance: 400.0 O, 4.000/40.00/400.0 kO ±(1% Rdg + 5 LSD) 4.000/40.00 MO ±(3% Rdg + 3 LSD)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The full featured ACDC-400 digital clamp multimeter provides a broad set of measurement capabilities to meet the needs of facility maintenance and field service professionals.

It combines the features of an AC/DC current clamp meter, voltage meter and electrical multimeter in a single tool. Use it to measure AC/DC current and AC/DC voltage, along with resistance, continuity, min/max, and relative measurements. Its large backlit LCD display, with digital and analog readings, makes it easy to read results in various lighting conditions.

In the Box

  • Amprobe ACDC-400 AC/DC 400 A Digital Clamp Multimeter
  • Carrying case
  • Test leads
  • Battery (installed)
