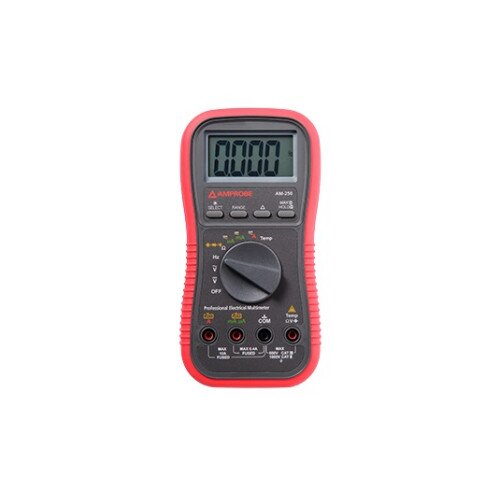

Amprobe AM-250 Industrial True-rms Digital Multimeter
Amprobe AM-250 Industrial True-rms Digital Multimeter Display Gallery Item 1
Amprobe AM-250 Industrial True-rms Digital Multimeter - 2 Display Gallery Item 2

Amprobe AM-250 Industrial True-rms Digital Multimeter Available Now

By: Amprobe

Model: 3524986

Sku: 7Y8RLP239T

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 13 Features
  • Measures AC/DC voltage up to 1000 V, current, resistance, frequency, capacitance and temperature
  • Audible continuity
  • Diode test
  • Auto and manual ranging
  • Relative zero mode
  • Data hold
  • Peak hold (30ms response time)
  • Backlight display
  • Large, easy to read LCD display
  • Beep-jack audible warning against improper connection
  • Auto power off
  • AC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • DC Voltage: 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
  • Resistance: 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO 4.000 MO, 40.00 MO
  • AC/DC Current: 40.00 µA, 400.0 µA, 400.0 mA, 4000 mA, 4.000 A, 10.00 A
  • Frequency: 5.000 Hz, 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 500.0 kHz, 1.000 MHz
  • Capacitance: 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF , 3000 µF
  • Temperature: -4 °F → 572 °F (-20 °C → 300 °C)
  • General specifications: 3-3/4 digits 4000 counts LCD display
  • Polarity: Automatic
  • Update rate: 3 per second nominal
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Power supply: 1.5 V AAA Size (NEDA 24A or IEC LR03) battery X 2
  • Power consumption: 3.2 mA
  • Special features: 25 ms Max Hold; Data Hold; Relative zero mode; Beep-jack input warning; Back-lighted display
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe AM-250 is a professional multimeter for Electrical and HVAC applications that is safety rated to CAT III 600 V and CAT II 1000 V for indoor applications requiring direct connection to main panel of the building. It measures a complete range of electrical parameters including voltage, current, resistance and frequency. It also covers HVAC applications with temperature, capacitance and micro amps functions.

In the Box

  • Amprobe AM-250 Industrial True-rms Digital Multimeter
  • Test Leads (pair)
  • Banana Plug K-Type Thermocouple
  • Batteries (Installed)
