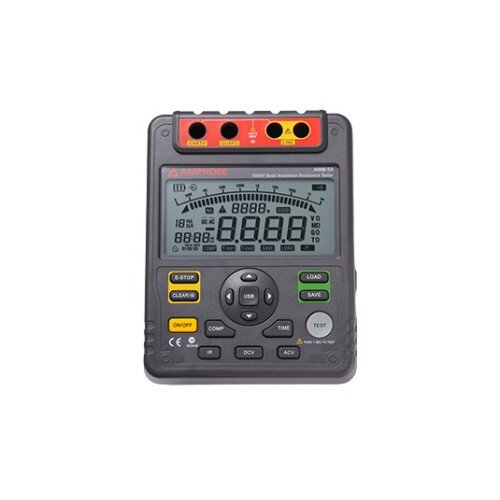

Amprobe AMB-50 Industrial High-Voltage Insulation Tester
Amprobe AMB-50 Industrial High-Voltage Insulation Tester Display Gallery Item 1
Amprobe AMB-50 Industrial High-Voltage Insulation Tester - 2 Display Gallery Item 2

Amprobe AMB-50 Industrial High-Voltage Insulation Tester Available Now

By: Amprobe

Model: 3730288

Sku: S0AB981ZJ7

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Test insulation of wires, cables, transformers, motors, surge arrestors and generators
  • Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000 V
  • Insulation resistance measurement up to 1T Ω
  • User selectable programmable timer (10s to 30 min)
  • Automatic discharge of test object after completion of measurement
  • Diagnostic tools
  • Polarization index (PI)
  • Dielectric absorption ratio (DAR)
  • Comparison feature to set pass/fail thresholds for quick measurement and verification
  • Dual power source – receptacle or batteries
  • Built in internal memory storing 18 measurements
  • Insulation resistance: 0.5 MO → 20 GO, 2 MO → 40 GO, 5 MO → 100 MO, 100 MO → 1000 GO
  • Test voltage and step voltage display range: 0 V → 5000 V
  • Current display range: 0 mA → 1.2 mA
  • Dielectric absorption ratio (DAR): 0 → 9.99
  • Polarization index (PI): 0 → 9.99
  • Dielectric discharge test (DD): 0 → 9.99
  • Leakage current display range: 1 mA → 1.2 mA
  • External voltage measurement: 30 V → 600 V
  • Memory size: 18 Measurements
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe AMB-50 High-Voltage Insulation Tester has the necessary features for professional insulation diagnostics. It features calculation of PI and DAR parameters. The pass/fail comparison function helps to improve testing productivity. Readings are clearly displayed on a large backlit LCD display. Windows compatible PC Software and USB communications port serve for connecting the instrument to the PC and management of the recorded test data.

In the Box

  • Amprobe AMB-50 Industrial High-Voltage Insulation Tester
  • Test Leads & Large Jaw Alligator Clips
  • Hard Carrying Case
  • Software & USB Interface Cable
  • Power Adapter
  • Batteries
