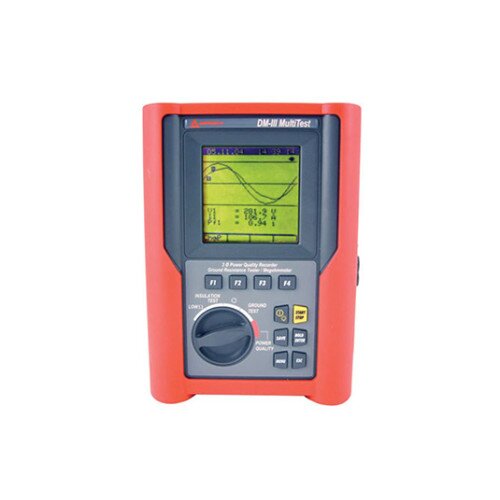

Amprobe DM-III Multitest F 3000A Power Quality Recorder
Amprobe DM-III Multitest F 3000A Power Quality Recorder Display Gallery Item 1

Amprobe DM-III Multitest F 3000A Power Quality Recorder Available Now

By: Amprobe

Model: DM-III Multitest F 3000A

Sku: QBA05NDFWT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • True-rms
  • Measures and records broad spectrum of power quality parameters: AC current, AC voltage to 600V including sags and surges, Harmonics (THD and individual up to 49th), active, reactive and apparent power energy, peak demand, power factor, frequency measur
  • Compatible with wide range of current transducers
  • Comes as a complete kit: current transducers, voltage leads, ground probes leads, PC software and download cable are included with this product.
  • Works with single and three phase systems (Y and Delta)
  • Detects and records voltage anomalies, sags and surges
  • Built in scope displays waveforms
  • Phase sequence indication
  • Records up to 64 parameters (single or three phase) simultaneously
  • Manual and programmable recording start
  • Password protection
  • Selectable fundamental frequency of 50 or 60 Hz
  • Special data compression system and user selectable rates allow recording from several hours to several years
  • Download capabilities, Windows compatible PC software
  • Displacement power factor for power factor correction determination
  • Line or battery powered
  • Megohmmeter functions: tests insulation of wires, cables, transformers and electrical motors
  • Selectable test voltages up to 1000V
  • Programmable timer to perform the dielectric absorption ratio test
  • Sensitive Ohmmeter for checking resistance of motor windings
  • Selectable polarization of ohmmeter for checking grounding continuity
  • Automatic voltmeter protects against misuse on hazardous energized systems
  • Supplied current transducer: AM-FLEX33 3000A Flexible 7 internal diameter CT +/-(0.5% Rdg + 2 LSD
  • AC Current: DM-CT-100:0.5A to 100A / DM-CT-HTA:5 – 1000A /AM-FLEX33: selectable: 5 – 1000A or 15 – 3000A +/-(0.5% Rdg + 2 LSD)
  • Harmonics: THD, DC and individual up to 49th +/-(0.5% Rdg + 2 LSD)
  • Power: Working (W), reactive (VAR) and apparent (VA) +/-(1.0% Rdg + 2 LSD
  • Energy: Working (kWh), reactive (VARh) and apparent (VAh) +/-(1.0% Rdg + 2 LSD)
  • Peak demand: KW +/-(1.0% Rdg + 2 LSD)
  • Power factor: 0.00 – 1.00
  • Frequency measurement: 57 to 63.6 Hz at 60Hz fundamental 47 to 53 Hz at 50Hz fundamental +/-(1.0% Rdg + 2 LSD)
  • Phase sequence: 1 – 2 – 3
  • Co-generation: Computes incoming and outgoing energy
  • Selectable fundamental frequencies: 50/60 Hz
  • Available recording time: Several hours to several years depending on setup
  • Insulation resistance with 50V DC test voltage: 0.01-19.99, 49.9 +/- (2% reading + 2 digits) 49.9 – 99.9MO +/- (5% reading + 2 digits)
  • Insulation resistance with 100V DC test voltage: 0.01-19.99, 99.9 +/- (2% reading + 2 digits) 99.9 – 199.9MO +/- (5% reading + 2 digits)
  • Insulation resistance with 250V DC test voltage: 0.01-19.99, 199.9, 249 +/- (2% reading + 2 digits) 249 – 499MO +/- (5% reading + 2 digits)
  • Insulation resistance with 500V DC test voltage: 0.01-19.99, 199.9, 499 +/- (2% reading + 2 digits) 499 – 999 MO +/- (5% reading + 2 digits)
  • Low resistance (without timer): 0.01-19.99, 99.9O+/- (2% reading + 2 digits)
  • Low resistance (with timer): 0.01-9.9O+/- (2% reading + 2 digits)
  • Ground resistance: 0-19.99, 199.9, 1999 O +/- (5% reading + 3 digits)
  • Ground resistivity: 0.6- 125.6 Om 0.125-1.256, 19.99, 199.9 kOm +/- (5% reading + 3 digits)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Cut energy costs and improve operating efficiency with Amprobe’s full-featured DM-III Multitest F, a three-phase power quality recorder that provides the essential functions and capabilities required to operate accurately and effectively in today’s demanding electrical environments. The DM-III Multitest F measures and records a broad spectrum of power quality parameters with True-rms accuracy and is compatible with a wide range of current transducers. This full-blown power quality recorder also measures ground resistance, tests insulation of wires, cables transformers and electrical motors.

In the Box

  • Amprobe DM-III Multitest F 3000A Power Quality Recorder
  • External power supply
  • Test leads
  • Ground resistance test leads with 4 ground stakes
  • Carrying case
  • PC software and USB cable
  • 3 current transducers
