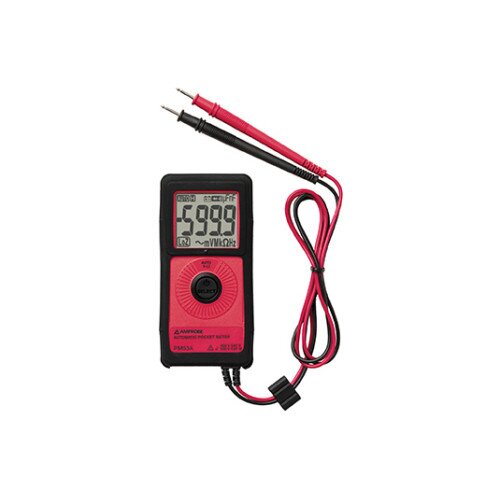

Amprobe PM53A Pocket Digital Multimeter with VolTect Non-Contact Voltage Detection
Amprobe PM53A Pocket Digital Multimeter with VolTect Non-Contact Voltage Detection Display Gallery Item 1

Buy Amprobe PM53A Pocket Digital Multimeter with VolTect Non-Contact Voltage Detection Now

By: Amprobe

Model: PM53A

Sku: YVB2D5LIMT

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • AutoTect knows if it is measuring AC volts, DC volts or resistance
  • The AutoTect feature has lower input impedance which zeros out ghost voltages
  • Measures capacitance, frequency, continuity with beeper
  • VolTect, a built-in, noncontact voltage detector
  • Large oversize digital display
  • Protective silicon holster included, attached test leads, battery and manual
  • Overload protection 450 V DC and V AC RMS
  • Sensing average sensing
  • Display and update rate 3-5/6 digits 6000 counts; updates 5 per second nomnal
  • Automatic power off (APO) timing (Idle for 3 minutes)
  • Low battery below approx. 2.4 V
  • Power supply 3 V standard button battery x 1
  • DC Voltage range: 6.000 V, accuracy: ± (0.5 %+3 dgt)
  • DC Voltage range: 60.00 V, accuracy: ± (1.0 %+5 dgt)
  • DC Voltage range: 450.0 V, accuracy: ± (1.2 %+5 dgt)
  • DC Voltage NMRR: > 30 dB @ 50 Hz/60 Hz
  • DC Voltage CMRR: > 100 dB @ DC, 50 Hz/60 Hz; Rs=1 kΩ
  • Input impedance: AutoTect Lo-Z V dc: 160 kΩ, 160 pF nominal
  • V DC AutoTect threshold: > +1.2 V dc or < -0.6 V dc nominal
  • AC Voltage range 50 Hz – 60 Hz: 6.000 V, 60.00 V, 450.0 V, Accuracy: ± (1.5 %+5 dgt)
  • AC Voltage CMRR: > 60 dB @ dc to 60 Hz, Rs=1 kΩ
  • Input impedance: AutoTect Lo-Z V ac: 160 kΩ, 160 pF nominal
  • ACV AutoTect threshold: > 1.5 V ac (50 Hz/60 Hz) nominal
  • Capacitance range: 100.0 nF, 1000 nF, 10.0 μF, 100.0 μF, accuracy: ± (3.5 %+6 dgt)**
  • Resistance range: 6.000 kΩ, accuracy: ± (1.2%+6 dgt)2
  • Resistance range: 60.00 kΩ, accuracy: 600.0 kΩ ± (1.0%+4 dgt)
  • Resistance Range: 6.000 MΩ, accuracy: ± (2.0%+4 dgt)
  • Frequency range: 100 Hz, 1 kHz, 10 kHz, accuracy: ± (0.5 %+4 dgt) Specified at < 20 V Sine-rms
  • VolTect typical voltage: 15 V to 55 V, bar graph indication: –
  • VolTect typical voltage: 30 V to 85 V, bar graph indication: – –
  • VolTect typical voltage: 55 V to 1450 V, bar graph indication: – – –
  • VolTect typical voltage: 85 V to 190 V, bar graph indication: – – – –
  • VolTect typical voltage: above 120 V, bar graph indication: – – – – –
  • Detection frequency: 50/60 Hz
  • Audible continuity tester: Open circuit voltage 0.4 V DC typical
  • Audible threshold: 175 Ω ±125 Ω
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Amprobe PM53A is an essential shirt pocket-sized meter that is only 3/8″ thick and less than 3 oz in weight. This meter offers full functionality with AC and DC voltage to 450 V, resistance to 6 Megohm, capacitance to 100 μF, frequency to 30 kHz and continuity with a beeper. It also offers VolTect, a built-in, non-contact voltage detection feature for AC voltages.

Another key feature is AutoTect which automatically selects AC and DC voltage, or resistance measurement based on the test point to which the leads are connected. Fully auto-ranging, this meter offers seven different measurement functions plus features that are usually found in much more expensive and larger meters. The digital display is oversized with large digits and unit icons in the display. In spite of its size, this meter is fully safety rated to CAT III 300 V, CAT II 450 V and is UL listed. Includes a silicone protective holster, attached test leads, battery and manual.

In the Box

  • Amprobe PM53A Pocket Digital Multimeter with VolTect Non-Contact Voltage Detection
  • H-PMA silicone holster
  • Battery (installed)
