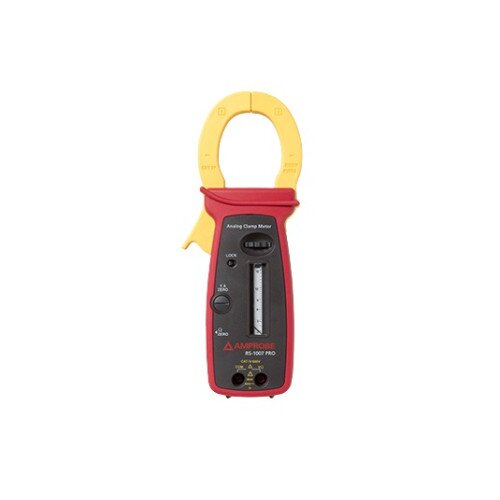

Amprobe RS-1007 PRO CAT IV 1000 A Analog Clamp Meter
Amprobe RS-1007 PRO CAT IV 1000 A Analog Clamp Meter Display Gallery Item 1

Amprobe RS-1007 PRO CAT IV 1000 A Analog Clamp Meter Available Now

By: Amprobe

Model: 3467476

Sku: 3K3SO2RCYY

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Measures AC current up to 1000 A
  • Voltage up to 600 V AC
  • Resistance and continuity
  • Pointer lock – data hold
  • Easy to use rotary scale
  • Measures volts and amps, no batteries required
  • Works in temperatures from 5 °F to 122 °F
  • Operates on 50 and 60 Hz frequency
  • CAT IV 600 V safety rated
  • AC Current: 15 A, 40 A, 100 A, 300 A, 1000 A
  • Accommodates conductors: up to 1.88″ (47 mm) in diameter
  • Display: Analog scales with clamping needle
  • Jaw opening/conductor diameter: 1.88″ (47 mm) max
  • Power supply volt/amp: Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03)
  • Safety LVD: Category IV – 600 Volts AC meets EN60101-1:2001; EN61010-2-032 (2002; pollution degree : II; class 2
  • AC Voltage (50/60 Hz) range: 150 / 300 / 600 V RMS
  • Accuracy: ± 3 % of full scale
  • Input impedance: 1.5 MO
  • AC Amp (50/60 Hz) range: 6 / 15 / 40 / 100 /600 Amps
  • Ohms range: 1000 ohms; 25 Ohms mid-scale
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Take this clamp meter to extremes. This CAT IV 600 V safety rated analog clamp is a great tool for tough electrical applications. The RS-1007 PRO works well in extreme temperatures (5 °F to 122 °F); where digital clamp LCD screens tend to freeze, this analog clamp measures up to the test. The RS-1007 PRO does not require batteries for measuring Amps and Volts.

In the Box

  • Amprobe RS-1007 PRO CAT IV 1000 A Analog Clamp Meter
  • Test Leads
  • Battery (Installed For Resistance Measurement Only)
  • Carrying Case
