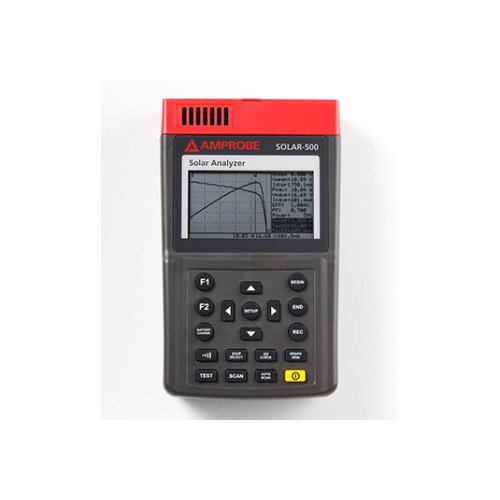

Amprobe SOLAR-500 Solar Power Analyzer
Amprobe SOLAR-500 Solar Power Analyzer Display Gallery Item 1

Amprobe SOLAR-500 Solar Power Analyzer - Best Deals Online!

By: Amprobe

Model: SOLAR-500

Sku: MMJ15CBWIZ

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • I-V Curve test for solar cell
  • Maximum solar power (Pmax) search by auto-scan (60V, 6A)
  • Maximum voltage (Vmaxp) at Pmax
  • Maximum current (Imaxp) at Pmax
  • Voltage at open circuit (Vopen)
  • Current at short circuit (Ishort)
  • I-V curve with cursor
  • Calculation of panel efficiency (%)
  • Manual single point test
  • DC Voltage: 0 V → 6 V, 6 V → 10 V, 10 V → 60 V
  • DC Current: 0 A → 0.6 A, 0.6 A → 1 A, 1A → 6 A
  • DC Current simulation: 0 A → 1 A, 1 → 6 A
  • DC Current simulation: 0 A → 1 A, 1 → 6 A
  • Scan delay: 0 mS → 3000 mS
  • Solar panel area: 0.001 m2 → 9999 m2
  • Standard light source: 10 W/m2 → 1000 W/m2
  • DC Voltage range: 0~6 V / 6~10 V / 10~60 V
  • Resolution: 0.001 V / 0.001 V / 0.01 V
  • Accuracy: ±1% ± (1% of Vopen ± 9 mV) / ±1% ± (1% of Vopen ± 0.09 V) / ±1% ± (1% of Vopen ± 0.09 V)
  • DC Current range: 0~0.6 A / 0.6~1 A / 1~6 A
  • Resolution: 0.1 mA / 0.1 mA / 1 mA
  • Accuracy: ±1% ± (1% of Ishort ± 0.9 mA) / ±1% ± (1% of Ishort ±9 mA) / ±1% ± (1% of Ishort ±9 mA)
  • Battery type: 1.2 V AA rechargeable battery x 8 (2500 mAh)
  • AC adaptor: AC 110 V or 220 V input, DC 12 V/3 A output
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Professional analyzer for testing, maintenance, troubleshooting and efficiency of solar panels. The analyzer is used in the installation of solar panels to determine the proper inverter size, optimum power output position of panels and identifies broken or worn-out cells.

In the Box

  • Amprobe SOLAR-500 Solar Power Analyzer
  • 1.2 V AA rechargeable batteries (installed)
  • AC adaptor
  • RS232C (to USB bridge) cable
  • Software CD
  • Test leads
  • Carrying case
  • Kelvin clips (6 A max)
