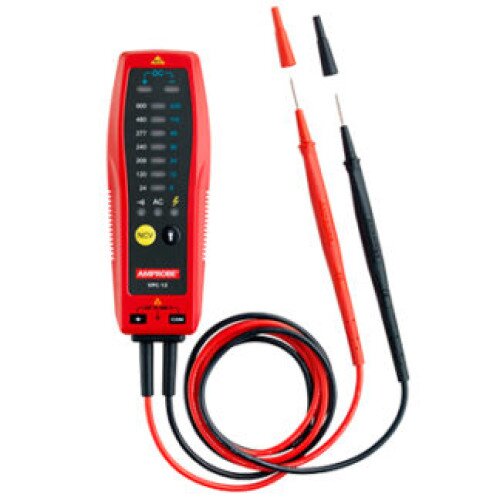

Amprobe VPC-12 Voltage and Continuity Tester
Amprobe VPC-12 Voltage and Continuity Tester Display Gallery Item 1
Amprobe VPC-12 Voltage and Continuity Tester - 2 Display Gallery Item 2
Amprobe VPC-12 Voltage and Continuity Tester - 3 Display Gallery Item 3
Amprobe VPC-12 Voltage and Continuity Tester - 4 Display Gallery Item 4
Amprobe VPC-12 Voltage and Continuity Tester - 5 Display Gallery Item 5

Amprobe VPC-12 Voltage and Continuity Tester - Best Deals Online!

By: Amprobe

Model: 4375938

Sku: F8RX37IKT7

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Quickly measure AC and DC voltage in circuitry and its components—including outlets, light fixtures, batteries and extension cords— as well as test the continuity of fuses, light bulbs and electrical connections
  • Full range polarity detection: signals continuity and voltage with visual, audible and vibrating alerts
  • Seven LED indicators clearly differentiate between key voltage levels: 24, 120, 208, 240, 277, 480, 600 V AC; and 6, 12, 24, 36, 48,110, 220 V DC.
  • Turns on when a complete circuit is sensed
  • Automatically selects AC or DC voltage or continuity mode
  • Auto-off when removed from a circuit
  • Rugged, compact design allow for easy one-handed use
  • Operating battery life of 40 hours
  • Rated for CAT IV 600 V environments, when the probe cap is off, the probe tip is 18 mm and rated to CAT II 1000 V
  • LED Voltage range: 24…600 V AC, 6…220 V DC
  • LED voltage indicators: AC volts: 24 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V, DC volts: 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V
  • Frequency range: 50 to 60 Hz
  • Acoustic indication: ≥ 24 VAC, ≥ 6 V DC
  • Built-in vibration alert: ≥ 24 VAC, ≥ 6 V DC
  • Tolerances LEDs: -30% to 0% of reading
  • Voltage detection: Automatic
  • Hazardous voltage indication: ≥ 24 VAC; ≥ 48 VDC
  • Range detection: Automatic
  • Polarity detection: Full range
  • Continuity indication: LED, buzzer and vibration ( 0 to 45 kΩ ON; >85 kΩ OFF)
  • Continuity range: 0 to 45 kΩ
  • Continuity tolerances: 0% to + 50%
  • Continuity buzzer: 3 kHz
  • VolTect non-contact voltage: 90 to 600 VAC, Sensitivity: beeps and vibrates ≤ 10 mm (0.39 in) distance from a wire carrying 100 VAC
  • Work light: yes
  • Input impedance: 1 MΩ
  • Operating time: 30 seconds ON maximum and wait for five minutes before taking another measurement
  • Operating altitude: ≤ 6561 ft (2000 m)
  • Operating temperature: 41 °F to 122 °F (5 °C to 50 °C)
  • Storage conditions: -22 °F to 140 °F (-30 °C to 60 °C)
  • Humidity (Without Condensation): ≥ 80% RH at 41 °F to 104 °F (5 °C to 40 °C); ≥ 50% RH at > 104 °F to 122 °F (> 40 °C to 50 °C)
  • Pollution degree: 2
  • Power supply: Three 1.5 V battery AAA, LR03, UM4 or equivalent
  • Battery life: 40 hours (alkaline) (typical)
  • Electrical safety: CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), CAN/CSA-C22.2 No. 61010-031-07, UL 61010-031 (1st Edition – 2007), CAN/CSA-C22.2 No. 61010-2-030-12, UL 61010-2-030(1st Edition -2012)
  • Overvoltage category: CAT IV 600 V, In CAT III or CAT IV environments, use the test probes with the probe cap on. This decreases the exposed probe tip to reduce the possibility of arc flash from short circuits. When the probe cap is off, the probe tip is 18 mm and rated to CAT II 1000 V.
  • EMC: Conforms to IEC 61326-1
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Amprobe’s hand-held residential and commercial Voltage and Continuity Tester is loaded with safety, time-saving and accuracy features. It allows you to quickly troubleshoot voltage and continuity for residential and commercial applications using visual, audible and tactile alerts.

In the Box

  • Amprobe VPC-12 Voltage and Continuity Tester
  • 3 x 1.5 V Batteries (AAA)
