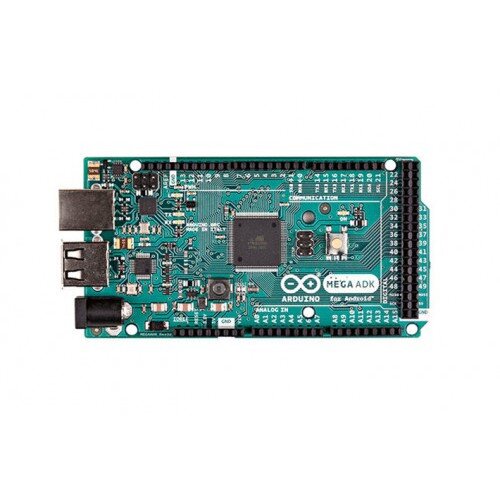

Arduino Mega ADK Rev3
Arduino Mega ADK Rev3 Display Gallery Item 1
Arduino Mega ADK Rev3 - 2 Display Gallery Item 2
Arduino Mega ADK Rev3 - 3 Display Gallery Item 3

Arduino Mega ADK Rev3 - Best Deals Online!

By: Arduino

Model: A000069

Sku: 1O1WVX1VNE

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Microcontroller: ATmega2560
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 54 (of which 15 provide PWM output)
  • Analog Input Pins: 16
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 256 KB of which 8 KB used by bootloader
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz
  • USB Host Chip: MAX3421E
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Arduino Mega ADK has the same features as the Arduino Mega board but it is specially designed to work with Android

The Arduino MEGA ADK is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android based phones, based on the MAX3421e IC. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs(hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

Similar to the Mega 2560 and Uno, it features an ATmega8U2 programmed as a USB-to-serial converter.

Revision 2 of the Mega ADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

In the Box

  • Arduino Mega ADK Rev3
