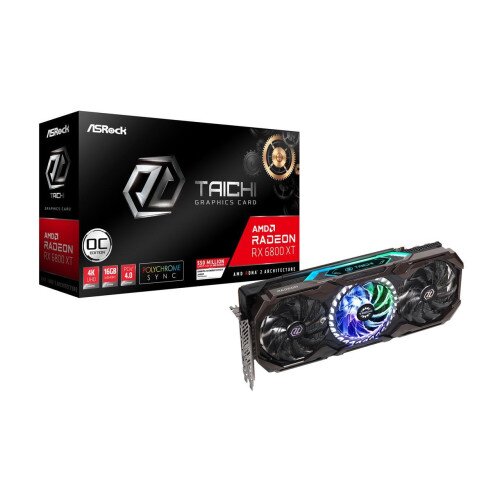

Buy ASRock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card Now

By: ASRock

Model: RX6800XT TCX 16GO

Sku: U31L1IHJHU

Availability: Out of stock New

Availability: Out of stock

  • Graphics Engine: - AMD Radeon RX 6800 XT Graphics
  • Bus Standard: - PCI Express 4.0 x16
  • DirectX: - 12 Ultimate
  • OpenGL: - 4.6
  • Memory: - GDDR6 16GB
  • Engine Clock: - Boost Clock: Up to 2360 MHz, - Game Clock: Up to 2110 MHz, - Base Clock: 1925 MHz
  • Stream Processors: - 4608
  • Compute Units: - 72
  • Memory Clock: - 16 Gbps
  • Memory Interface: - 256-bit
  • Resolution: - Digital Max Resolution: 7680 x 4320
  • Interface: - 1 x HDMI 2.1 VRR, - 2 x DisplayPort 1.4 with DSC, - 1 x USB-C
  • HDCP:- Yes
  • Multi-view: - 4
  • Recommended PSU: - 800W
  • Power Connector: - 3 x 8-pin
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

OC EditionGreat Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

Taichi 3X Cooling System

Crafted for the best balance between the thermal efficiency and silence by all the details improved.

Striped Axial FanDesigned For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting FinGuide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit HeatpipeConsolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper BaseMaximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal WeldingImprove Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal PastePerfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal PadBetter Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw TorqueOptimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent CoolingSpin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNCCreate your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off SwitchOn or Off? Switch as You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-headerMore ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal FrameReinforced Metal Frame

Enhances the structure to prevent the PCB from being bent.

ARGB BackplateShining, Solid, Cool.

Designed for elegancy and to avoid PCB bending. The brand new ARGB light makes the graphic card more shining in visual.

Dual BIOS

Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.

USB-C

By the USB-C port included, this graphics card enables seamless integration into your life and hardware setup.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 70A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

Powerhouse Performance

AMD Radeon RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

Elevated Experiences

Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.1, 2 Propel your gaming experience with the latest HDMI 2.1 VRR technology, USB-C enabled VR headsets, or over 1250 AMD FreeSync technology-enabled gaming displays.3

Vivid Visuals

AMD Radeon RX 6000 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA 2 architecture.

One Gaming DNA for PCs and Consoles

AMD RDNA 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.

In the Box

  • ASRock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card
  • Sticker
  • Coaster
  • Door Hanger
  • Quick Installation Guide
