ASRock Desk B760 Series Mini Pc

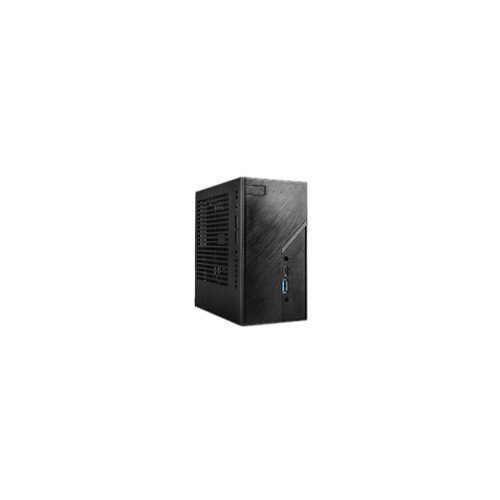

ASRock Desk B760 Series Mini Pc Display Gallery Item 1
ASRock Desk B760 Series Mini Pc - 2 Display Gallery Item 2
ASRock Desk B760 Series Mini Pc - 3 Display Gallery Item 3
ASRock Desk B760 Series Mini Pc - 4 Display Gallery Item 4

ASRock Desk B760 Series Mini Pc - Best Deals Online!

By: ASRock

Model: Desk B760 Series Mini Pc

Sku: ZH3TF6DIV2

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Max. TDP 65W
  • Chipset: Intel B760
  • Cooler: Supports Intel CPU Cooler (Max. Height (47mm)
  • Memory: Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
  • Graphics: HDMI (4K@60Hz), DisplayPort 1.4, DisplayPort 1.4 (over USB Type-C Alt Mode), D-Sub
  • Audio: Realtek ALC269 Audio Codec
  • Storage: 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1), Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode, Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes, Supports Intel Optane Technology, Supports NVMe SSD as boot disks, Supports Intel Volume Management Device (VMD)
  • LAN: 2.5 Gigabit LAN (Dragon RTL8125BG)
  • WLAN: M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
  • Front I/O: MIC-In, USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), Head Phone with MIC Jack
  • Rear I/O: DC-In Jack (Compatible with the 19V power adapter), D-Sub Port, HDMI Port, DisplayPort 1.4, USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode), 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), RJ-45 LAN Port with LED
  • Connectors: USB 2.0 Header, Front Panel Header, 2 x 4-Pin fan connectors (CPU, SYS), Internal Speaker Header (4-Pin), Audio Header (4-Pin)
  • OS: Microsoft Windows 10 64-bit / 11 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), up to 65W
  • Dual DDR4-3200MHz SO-DIMMs, up to 64GB
  • Multi Video Outputs: DisplayPort, HDMI & D-Sub
  • USB 3.2 Gen2x2 Type-C port (20 Gb/s)
  • USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
  • USB 3.2 Gen2 Type-A port (10 Gb/s)
  • Blazing M.2 (PCIe Gen5 x4) Slot
  • Hyper M.2 (PCIe Gen4 x4) Slot
  • 2 x 2.5" HDD/SSD with RAID 0/1
  • M.2 Key-E for Wi-Fi

Mini Size, Mighty Power

DeskMini B760 adopts LGA1700 CPU socket which supports the latest 13th Gen Intel Core Processors for delivering ultimate computing performance within a tiny PC.

Dr.MOS

The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Heatsink on MOSFET

ASRock DeskMini B760 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.

Dual Channel DDR4-3200

DeskMini B760 supports Dual Channel DDR4-3200MHz high-speed memory, up to 64GB.

2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

USB Alternate Mode

A USB 3.2 Gen2 Type-C with alternate mode is available on the rear I/O, offering a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate.

USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Rapid USB Connectivity

DeskMini B760 supports a USB 3.2 Gen2 Type-A in the front panel, delivering 10Gbps speedy data transfer rate. In addition, DeskMini B760 brings 4 x USB Type-A ports on the rear I/O for all of your peripherals.

Optane Memory Technology

The Supports on Intel Optane memory technology and Intel Optane storage technology redefines a new standard of high performance and responsiveness.

High Speed M.2 Solution

DeskMini B760 offers two M.2 2280 slots. One of them can even support the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation. All of your apps and programs will load with lightning speed which makes you working or gaming faster than ever.

  • M2_1 M.2 (2280) –PCIe Gen5 x4
  • M2_2 M.2 (2280) –PCIe Gen4 x4

Mini Home Data Center

DeskMini B760 supports RAID 0/1 function! Build mini data center at home!

  • RAID 0 –offers superior I/O performance
  • RAID 1 –protects critical data in mirrored data

Quadruple Displays

Up to four video outputs can be used simultaneously for productivity and multitasking. DisplayPort 1.4 ports allow you to enjoy Ultra HD content on an 8K monitor or TV.

Rear USB Type-C supports DisplayPort 1.4 signal

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

  • step1: Install Auto Driver Installer
  • step2: Update drivers needed
  • step3: Done!

DeskMini Addressable LED(Optional)

Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.

The availability of ARGB LED Strip may vary from model or region to another.

DeskMini USB Hub(Optional)

Attach the magnetic DeskMini USB Hub inside the chassis. Let you easy connect to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.

The availability of DeskMini USB Hub may vary from model or region to another.

VESA Mount Kit (Optional)

Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.

The availability of VESA Mount Kit may vary from model or region to another.

Rear Audio Cable (Optional)

Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on...

The availability of Rear Audio Cable may vary from model or region to another.

Intel Wi-Fi Kit (Optional)

ASRock M.2 Wi-Fi Kit includes Intel M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini.

Intel AX210 or Intel AC3168

The availability of M.2 Wi-Fi Kit may vary from model or region to another.

USB 2.0 Cable (Optional)

Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane.

The availability of USB cable may vary from model or region to another.

In the Box

  • ASRock Desk B760 Series Mini Pc
  • 2 x SATA Data with Power Cable
  • 120W/19V Adapter
  • Screws Pack
