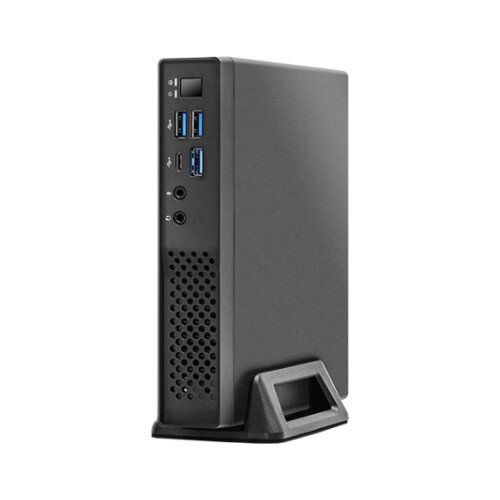

ASRock Jupiter B660 Mini Pc - Best Deals Online!

By: ASRock

Model: Jupiter B660 Mini Pc

Sku: 809YEW1WGD

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports 14th, 13th & 12th Gen Intel Core Processors (Max. TDP 65W)
  • Chipset: Intel B660 Chipset
  • Cooler: Integrated Cooling Solution
  • Memory: Supports 2 x DDR4-3200MHz SO-DIMM Slots, Max. 64GB (non-ECC)
  • Graphics Output: DisplayPort 1.4 (DP1), DisplayPort 1.2 (DP2), HDMI,DP2 co-lay D-Sub
  • Audio: Realtek ALC269, Head Phone with Mic Jack, Mic-In, 2W Speaker
  • Storage: SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive, Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode, Supports NVMe SSD as boot disks
  • LAN: RJ45 Gigabit LAN, Realtek RTL8111FP
  • WLAN: Intel AC3168/AX210 Wi-Fi Module
  • Front I/O: Power Button, Headphone/Headset Jack, 3 x USB 3.2 Gen1 Type-A Ports, USB 3.2 Gen1 Type-C Port, Microphone Input Jack
  • Rear I/O: DC Jack (Compatible with the 19V power adapter), HDMI Port, 2 x DisplayPort, COM Port, 4 x USB 3.2 Gen1 Type-A Ports, USB 3.2 Gen1 Type-C Port, RJ-45 LAN Port with LED
  • Connectors: COM Port Header, Chassis Intrusion Header, CPU Fan Connector (4-pin), Chassis Fan Connector (4-pin) (Smart Fan Speed Control), Mono-Out Header
  • Power Unit: 120W/19V Adapter
  • OS: Microsoft Windows 10/11 64-bit compliant
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), up to 65W
  • Dual DDR4-3200MHz SO-DIMMs, up to 64GB
  • Integrated thermal solution
  • Multi Video Outputs: 2 x DisplayPort (co-lay D-Sub), HDMI
  • 2 x USB 3.2 Gen1 Type-C, 7 x USB 3.2 Gen1 Type-A
  • Support RS232 (COM) port
  • 2 x M.2 (2280) slot for SSD (PCIe Gen4 x4)
  • M.2 (2230) slot for Wi-Fi
  • Optional 2W Speaker
  • TPM 2.0 IC, DASH LAN

Tiny but Awesome

Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel Core processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user’s needs.

Jupiter 600 Series Platform

  • Intel LGA1700 Socket CPU
  • Supports 13th Gen & 12th Gen Intel Core Processors, up to 65W
  • High Speed DDR4 Memory
  • Dual DDR4-3200MHz, up to 64GB
  • Proprietary Thermal Solution
  • Copper based heatsink
  • High efficiency blower

Three-storage Design

Three-storage design for fast data transfer speed and high storage capacity.

  • SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
  • Hyper M.2 (2280) – PCIe Gen4 x4
  • Ultra M.2 (2280) –PCIe Gen3 x4

JPT 600 series could not support 2.5” HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory).

Optional Wi-Fi Module

Jupiter H610 supports optional Intel M.2 Wi-Fi & Bluetooth Module:

  • Intel AX-210
  • Intel AC-3168

Rich Connectivity

Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage.

Front Side

  • USB 3.2 Gen1 Type-C
  • 3 x USB 3.2 Gen1 Type-A

Enhanced Productivity

With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work.

3 Video Outputs

  • HDMI 4K@60Hz
  • DisplayPort 1.2(DP2) 4K@60Hz
  • DisplayPort 1.4(DP1) 8K@60Hz

Security Solutions

DASH LAN

Provides secure out-of-band and remote management of desktop via intranet/internet.

TPM 2.0

Jupiter series supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.

Chassis Intrusion

Get alert if Jupiter’s chassis has been opened

Space-saving Design

VESA Mount

Let you mount Jupiter behind the monitor easily.

STAND (Optional)

Jupiter can stand vertically to save desk space.

In the Box

  • ASRock Jupiter B660 Mini Pc
  • SATA Data with Power Cable
  • Screws Pack
  • Stand
  • VESA Mount
  • 2 x Antennas
  • Quick Installation Guide
