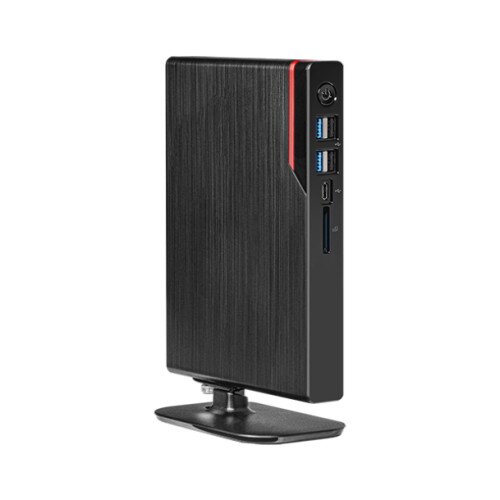

ASRock Mars 5000U Series Mini Pc
ASRock Mars 5000U Series Mini Pc Display Gallery Item 1
ASRock Mars 5000U Series Mini Pc - 2 Display Gallery Item 2
ASRock Mars 5000U Series Mini Pc - 3 Display Gallery Item 3
ASRock Mars 5000U Series Mini Pc - 4 Display Gallery Item 4
ASRock Mars 5000U Series Mini Pc - 5 Display Gallery Item 5
ASRock Mars 5000U Series Mini Pc - 6 Display Gallery Item 6

ASRock Mars 5000U Series Mini Pc - Best Deals Online!

By: ASRock

Model: Mars 5000U

Sku: PUMYK2CQDY

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: AMD Ryzen 5 5500U (6C12T, Turbo 4.0GHz)
  • Cooler: Integrate Proprietary Fansink
  • Memory: Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
  • Graphics: AMD Radeon Graphics
  • Graphics Output: HDMI (4K@60Hz), D-Sub (1920x1200)
  • Audio: Realtek ALC233-VB2, Line Out, Microphone
  • Front USB: USB 3.2 Gen1 Type-C (5Gbps), USB 3.2 Gen1 Type-A (5Gbps), 2 x USB 2.0
  • Rear USB: 2 x USB 3.2 Gen1 Type-A
  • Storage: Ultra M.2 (2280) PCIe Gen3 x4 & SATA 6Gb, SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive, SD Card Reader
  • LAN: RJ45 Gigabit LAN
  • WLAN: M.2 (key E 2230) Slot for Wi-Fi + BT Module, Intel AX210 Wi-Fi 6E Module
  • Power Unit: 65W/19V Adapter
  • OS: Microsoft Windows 10 64-bit / 11 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • AMD Ryzen 5000U Series APU
  • Dual Channel DDR4-3200MHz Memory
  • HDMI, D-Sub
  • Ultra M.2 2280 Slot (NVMe)
  • 2.5" SATA 6Gb Hard Drive
  • M.2 For Wi-Fi
  • USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
  • SD Card Reader

Compact & Slim

Mars features slim 26mm thickness with only 0.7 liter compact size. Adopts the powerful Ryzen 5000U series APU and rich connectivity.

AMD Ryzen 5000U series APU

Mars 5000U is powered by the latest AMD 7nm Ryzen 5000U series mobile processor, providing immersive computing power.

Quiet Cool

Because of high-performance thermal solution, Mars draws less than 24dB at idle and keeps CPU cool for upmost applications.

Test environment: the microphone is 50cm away from test machine in Semi-Anechoic chamber

High Speed Memory

Mars supports Dual Channel DDR4-3200MHz memory, up to 64GB; to deliver great performance.

7 USB Ports!

  • Mars offers abundant USB devices connectivity, featuring five easily accessible USB ports on the front panel including one Type-C port.
  • Front: USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
  • Rear: 2 x USB 3.2 Gen1 Type-A

Dual Storages

  • Mars supports PCIe Gen3 x4 M.2 NVMe SSD and 2.5” SATA 6Gb storage, offering large storage capacity.
  • Ultra M.2 (2280) – PCIe Gen3 x4 & SATA 6Gb
  • 2.5” SATA 6Gb SSD/HDD Tray

SD Card Reader

Mars features SD Card Reader to access photo from digital camera and offer extra storage space.

Please refer to SD Card support list for the best compliant.

Dual Display Output

Mars supports 2 display output simultaneously via HDMI (4K@60Hz) and D-Sub (FHD@60Hz), expanding desktop by multiplying your screen area as well as providing more productivity and usefulness.

Wireless Connectivity

  • Mars supports an M.2 2230 slot for Wireless + Bluetooth module to offer wider connectivity.
  • Optional Intel AC-3168 Wi-Fi card.
  • Optional Intel AX210 Wi-Fi card

Audio Jack

ASRock Mars retains two audio jacks to let you connect external headphone and microphone.

VESA Mount

For better space planning, VESA mount enables you to mount Mars behind the monitor.

In the Box

  • ASRock Mars 5000U Series Mini Pc
  • Vesa Mount
  • Stand
