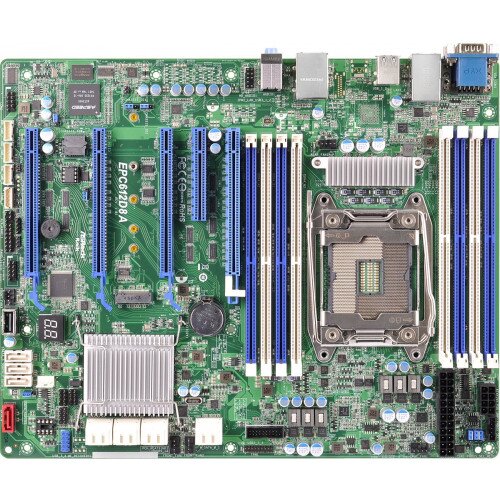

ASRock Rack EPC612D8A Motherboard
ASRock Rack EPC612D8A Motherboard Display Gallery Item 1
ASRock Rack EPC612D8A Motherboard - 2 Display Gallery Item 2
ASRock Rack EPC612D8A Motherboard - 3 Display Gallery Item 3

ASRock Rack EPC612D8A Motherboard - Best Deals Online!

By: ASRock Rack

Model: EPC612D8A

Sku: CSNYACCAP6

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • ATX 12'' x 9.6''
  • Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3/v4 series
  • Supports Quad channel DDR4 2400/2133/1866/1600 R DIMM AND LR DIMM, 8 x DIMM slots
  • Supports 9 SATA3 by C612 (1 support SATA DOM), 2 SATA3 by Marvell 9172
  • Supports 4x PCIe 3.0 x16, 1x PCIe 3.0 x8 and 1 mini PCIe slot
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports Intel Dual GLAN (Intel i210 + Intel i217)
  • Supports Audio by ALC 1150 (3 Jack)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • MB Physical Status: Form Factor - ATX, Dimensions - 12'' x 9.6'' (30.5 cm x 24.4 cm)
  • Processor System: CPU - Intel Xeon processor E5-1600/2600 v3/v4 series, *BIOS version 2.0 or above is required.Socket - Single Socket LGA 2011 R3*, *Please use narrow type CPU Cooler, Chipset - Intel C612
  • System Memory: Capacity - 8 DIMM slots, Type- Quad Channel memory technology, - Support DDR4 2400/2133/1866/1600 RDIMM, and LRDIMM**Only E5-1600/2600 V4 CPUs support DDR4 2400.DIMM Size Per DIMM - RDIMM: 32GB, 16GB, 8GB, 4GB - LRDIMM: 64GB, 32GB, Voltage - 1.2V
  • Expansion Slot: PCIe 3.0 x 16- 4 slots (PCIE1/PCIE3: x16x0 or x8/x8, PCIE5/PCIE7: x16x0 or x8/x8 ), PCIe 3.0 x 8- 1 slot (PCIE4: x8 or x4 with mini PCIe x4 ), mini PCIe- 1 (support M.2 (Full and Half size)) (x4)
  • Storage: SATA Controller - Intel C612 : 6 x SATA3 6.0Gb/s; 4 x sSATA3 6.0Gb/s; support RAID 0, 1, 5, 10 ( 1 x SATA DOM), Additional Storage Controller - Marvell 9172: 2 x SATA3 6Gbps
  • Ethernet: Interface- 1000 /100 /10 Mbps, LAN Controller- 2 x RJ45 by Intel i210 + Intel i217LM, - 1 x RJ45 Dedicated IPMI LAN port,- Supports Wake-On-LAN, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE, - LAN1 Supports NCSI
  • Management: BMC Controller- ASPEED AST2400, IPMI Dedicated GLAN- 1 x Realtek RTL8211E for dedicated management GLAN, Features- Watch Dog, - NMI
  • Graphics: Controller- ASPEED AST2400, VRAM- DDR3 16MB
  • Audio: Audio Codec- Realtek ALC1150
  • Rear Panel I/O: VGA Port- 1 x D-Sub, USB 2.0 Port- 2, USB 3.1 Gen1 Port- 2, Lan Port- 2 + 1 (IPMI) Lan port (RJ45), - LAN Ports with LED (ACT/LINK LED and SPEED LED), Serial Port- 1 (COM1), ThunderBolt- NA, Audio- 3 Jack
  • Internal Connector: Auxiliary Panel Header- 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED), TPM Header- 1, IPMB Header- 1, Buzzer- 1, Fan Header- 1x CPU Fan, 4x system Fan (4-pin), ATX Power- 1 (24-pin) + 1 (8-pin), USB 3.1 (Gen1) Header- 1 (support 2 USB 3.0), USB 2.0 Header- 1 (support 2 USB 2.0), Type A USB 2.0 Port- 1, Front Panel- 1, 4 pin 5V box connector- 1
  • System BIOS: BIOS Type- 128Mb AMI UEFI Legal BIOS, BIOS Features- Plug and Play (PnP), - ACPI 2.0 Compliance Wake Up Events, - SMBIOS 2.8 Support, - ASRock Rack Instant Flash
  • Hardware Monitor: Temperature- CPU Temperature Sensing, - System Temperature Sensing, Fan- CPU/Rear/Front Fan Tachometer, - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), - CPU/Rear/Front Fan Multi-Speed Control, Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
  • Support OS: OSMicrosot Windows , - Windows 7 (32 / 64 bit), - Windows 8 (32 / 64 bit), - Windows 8.1 (32 / 64 bit), - Windows 10 (64 bit), - Server 2008 R2 SP1 (64 bit), - Server 2012 (64 bit), - Server 2012 R2 (64 bit), - Server 2016 (64 bit), Linux: - RedHat Enterprise Linux Server 6.5 (32 / 64 bit), - CentOS 5.10 / 6.5 (32 / 64 bit), - SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit), - FreeBSD 9.2 (32 / 64 bit), - Fedora core 19 (64 bit), - Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit), Virtual: - VMWare ESXi 5.5 (not supported for Marvell 9172),
  • Environment: Temperature- Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

In the Box

  • ASRock Rack EPC612D8A Motherboard
