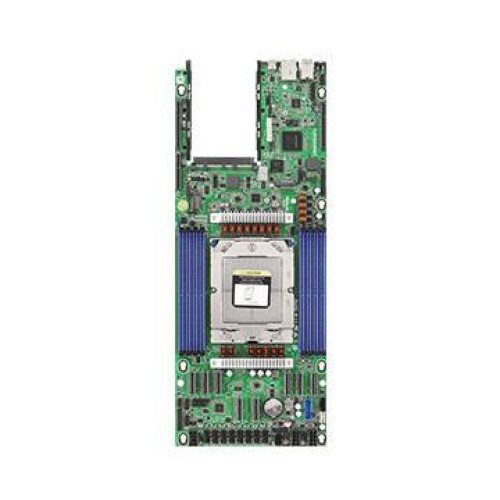

ASRock Rack TURIND8HM3 Motherboard
ASRock Rack TURIND8HM3 Motherboard Display Gallery Item 1
ASRock Rack TURIND8HM3 Motherboard - 2 Display Gallery Item 2
ASRock Rack TURIND8HM3 Motherboard - 3 Display Gallery Item 3
ASRock Rack TURIND8HM3 Motherboard - 4 Display Gallery Item 4

ASRock Rack TURIND8HM3 Motherboard - Best Deals Online!

By: ASRock Rack

Model: TURIND8HM3

Sku: LD7XHFVQV9

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
  • Socket: Single Socket SP5 (LGA 6096)
  • Thermal Design Power: Up to 400W
  • Chipset: System on Chip
  • Supported DIMM Quantity: 8 DIMM slots (1DPC)
  • Supported Type: Supports DDR5 288-pin RDIMM, RDIMM-3DS
  • Max. Capacity per DIMM: RDIMM: 96GB (2R), RDIMM-3DS: 512GB (2S8Rx4)
  • Max. DIMM Frequency: 6000 MHz
  • Voltage: 1.1V
  • PCIe x 16: SLOT2: Slim cool edge (PCIe5.0 x16), SLOT1: Slim cool edge (PCIe5.0 x16)
  • PCIe x 8: SLOT3: Slim cool edge (PCIe5.0 x8)
  • M.2 slot: 2 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor
  • Others: 2 MCIO* (PCIe5.0 x8 or 8 SATA 6Gb/s), 6 MCIO (PCIe5.0 x8)
  • PCH Built-in Storage: AMD EPYC 9005/9004 (18 SATA 6Gb/s): 2 MCIO, 2 M.2
  • Additional SATA Controller: ASM1061R (2 SATA 6Gb/s): 1 OCuLink
  • OCP slot: 1 OCP NIC 3.0 (PCIe5.0 x16)
  • BMC Controller: ASPEED AST2600
  • IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
  • Controller: ASPEED AST2600
  • VRAM: DDR4 512MB
  • UID Button/LED: 1 UID button w/ LED
  • VGA Port: 1 mini DisplayPort (VGA)
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45: 1 dedicated IPMI
  • Power Connector: 3 (8-pin, ATX 12V)
  • Other Power Connectors: 1 (4-pin) for HDD power
  • Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, locate, SMBus
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • COM Header: 1
  • VGA header: 1
  • Speaker Header: 1 (4-pin)
  • Buzzer: 1
  • Fan Header: 8 (6-pin)
  • Thermal Sensor Header: 1
  • SGPIO Header: 2
  • SMBus header: 1
  • PMBus header: 1
  • IPMB Header: 1
  • Clear CMOS: 1 (contact pads)
  • 1 (19-pin, 2 USB3.2 Gen1)
  • NMI Header: 1
  • Standby PWR LED: 1 (5VSB)
  • 80 Debug Port LED: 1
  • Fan Fail LED: 8
  • BMC heartbeat LED: 1
  • BIOS Type : AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
  • BIOS Features: ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
  • Temperature: CPU, MB, Card side, TR1 Temperature sensing
  • Fan: Fan Tachometer, Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control
  • Voltage: VDDCR_CPU, VDDCR_SOC, VDDIO, VDD_18_S5, VDD_33_S5, VDD_11_S3, +3V, +5V, +12V, +BAT, +1V8SB, 3VSB, 5VSB
  • OS: Microsoft Windows: - Server 2019 (64bit), - Server 2022 (64 bit), Linux: - RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit), - SUSE SLES 15.4(64 bit), - UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit), Hypervisor:: - VMWare ESXi/ 7.0 U3i / 8.0, - CITRIX Hypervisor 8.2.1
  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Half-width (6.6" x 17")
  • Single Socket SP5 (LGA 6096), supports AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
  • 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 2 PCIe5.0 x16, 1 PCIe5.0 x8
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 6 MCIO (PCIe5.0 x8)
  • 1 OCuLink (2 SATA 6G/b) by ASM1061R
  • 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s)
  • Up to 20 SATA 6Gb/s
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
  • Remote Management (IPMI)

In the Box

  • ASRock Rack TURIND8HM3 Motherboard
