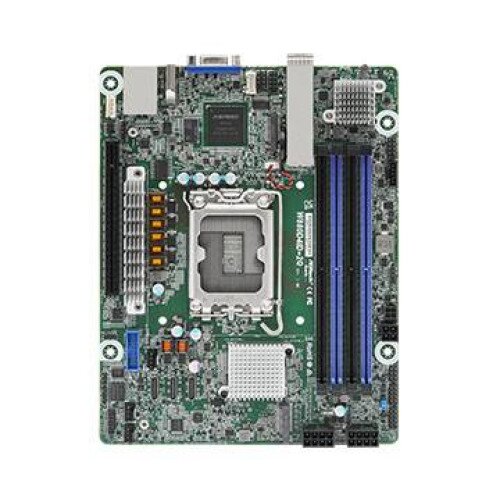

ASRock Rack W880D4ID-2Q Motherboard - Best Deals Online!
Sku: ZMMHB1KAV3
Sign up for price alert
4939
Availability:
Out of stock
New
Availability: Out of stock
1772610083
- Form Factor: Deep mini ITX
- CPU: Supports Intel Core Ultra Desktop Processors (Series 2)
- Socket: Single Socket LGA 1851
- Chipset: Intel W880
- Supported DIMM Quantity 4 DIMM slots (2DPC)
- Supported Type DDR5 288-pin ECC/non-ECC UDIMM
- Max. Capacity per DIMM: 48GB
- Max. DIMM Frequency: max. 5600MT/s (2SPC - 0r2r), max. 4400MT/s (2SPC - 2r2r)
- PCIe x 16: SLOT7: PCIe5.0 x16 [CPU]
- M.2 slot: 1 M-key (PCIe5.0 x4), supports 2280 form factor [CPU], 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
- OCuLink: 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH], 1 OCuLink (PCIe4.0 x4) [PCH]
- OCuLink: 2 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH], 1 OCuLink (PCIe4.0 x4) [PCH]
- PCH: Built-in Storage Intel W880 (8 SATA 6Gb/s; RAID 0/1/5/10): 2 OCuLink
- Additional GbE Controller 2 SFP28 (25GbE) by Intel E810
- BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
- IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
- Controller: ASPEED AST2600: 1 DB15 (VGA), Intel Integrated Processor Graphics: 1 HDMI
- UID Button/LED: 1 UID button, 1 UID LED
- VGA Port: 1 DB15 (VGA), 1 HDMI
- USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
- RJ45: 1 dedicated IPMI
- Other network connector: 2 SFP28 (25GbE)
- Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
- Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source
- Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
- System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
- COM Header: 1 (9-pin)
- Speaker Header: 1
- Fan Header: 3 (4-pin)
- Thermal Sensor Header: 1
- TPM Header: 1 (13-pin, SPI)
- SGPIO Header: 1
- SMBus header: 1
- PMBus header: 1
- IPMB Header: 1
- Clear CMOS: 1(2-pin)
- Others: 1 UID_LED, 1 IPMI_LED
- USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
- NMI Header: 1
- NC-SI: 1
- Standby PWR LED: 1 (5VSB)
- Fan Fail LED: 3
- BMC heartbeat LED: 1
- BIOS Type: AMI 256Mb SPI Flash ROM
- BIOS Features: Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
- Temperature: CPU, PCH, MB temp, Card side temp, TR1, VR, M.2, E810 Temperature Sensing
- Fan: Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control
- Voltage: VCORE, GT, VCCSA, VNNAON, VCCIO, 1.8V_CPU, VDD2, 0.82V_PCH, 1.8VSB, 3V, 5V, 12V, BAT, 3VSB, 5VSB
- Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
- Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
