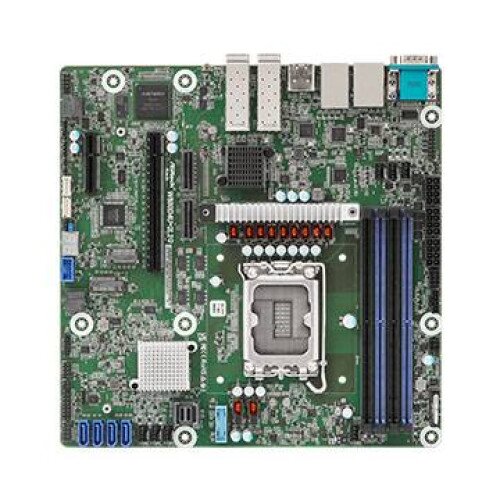

ASRock Rack W880D4U-2L2Q Motherboard
ASRock Rack W880D4U-2L2Q Motherboard Display Gallery Item 1
ASRock Rack W880D4U-2L2Q Motherboard - 2 Display Gallery Item 2
ASRock Rack W880D4U-2L2Q Motherboard - 3 Display Gallery Item 3
ASRock Rack W880D4U-2L2Q Motherboard - 4 Display Gallery Item 4

ASRock Rack W880D4U-2L2Q Motherboard - Best Deals Online!

By: ASRock Rack

Model: W880D4U-2L2Q

Sku: RBLW326VFK

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Form Factor: Micro-ATX
  • CPU: Supports Intel Core Ultra Desktop Processors (Series 2)
  • Socket: Single Socket LGA 1851
  • Thermal Design Power: 125W
  • Chipset: Intel W880
  • Supported DIMM Quantity : 4 DIMM slots (2DPC)
  • Supported Type: DDR5 288-pin ECC/non-ECC UDIMM
  • Max. Capacity per DIMM: 48GB
  • Max. DIMM Frequency: max. 5600MT/s (2SPC - 0r2r), max. 4400MT/s (2SPC - 2r2r)
  • Voltage: 1.1V
  • PCIe x 16: SLOT6: PCIe5.0 x16 [CPU], *MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required.
  • PCIe x 4: SLOT4: PCIe5.0 x4 [CPU]
  • TPM support: 1 (13-pin, SPI)
  • M.2 slot: 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU], 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
  • Others: MCIO1 (PCIe5.0 x8 or 2 PCIe5.0 x4)* [CPU], MCIO2 (PCIe4.0 x4) [PCH]
  • PCH Built-in Storage: Intel W880 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 Mini-SAS HD
  • Additional GbE Controller: 2 SFP28 (25GbE), 2 RJ45 (1GbE) by Intel i210
  • BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
  • IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
  • Controller: ASPEED AST2600: 1 DB15 (VGA), Intel Integrated Processor Graphics: 1 HDMI, 1 DisplayPort
  • UID Button/LED: 1 UID button, 1 UID LED
  • VGA Port: 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
  • Serial Port: 1 DB9 (COM)
  • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
  • RJ45: 2 RJ45 (1GbE), 1 dedicated IPMI
  • Other network connector: 2 SFP28 (25GbE)
  • Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
  • Other Power Connectors: 1 (6-pin) for HDD power when using 12V DC-in power source
  • Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
  • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
  • COM Header: 1 (9-pin)
  • VGA header: 1 (15-pin)
  • Speaker Header: 1
  • Fan Header: 7 (4-pin)
  • Thermal Sensor Header: 1
  • TPM Header: 1 (13-pin, SPI)
  • SGPIO Header: 1
  • SMBus header: 1
  • PMBus header: 1
  • IPMB Header: 1
  • Clear CMOS: 1 (2-pin)
  • Front Lan LED Connector :1
  • USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
  • USB 2.0 Header: 1 header (9-pin, 2 USB2.0)
  • NMI Header: 1
  • Standby PWR LED: 1 (5VSB)
  • 80 Debug Port LED: 1
  • Fan Fail LED: 7
  • BMC heartbeat LED: 1
  • BIOS Type: AMI 256Mb SPI Flash ROM
  • BIOS Features: Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
  • Temperature: CPU, PCH, MB temp, Card side temp, TR1, VR, M.2 Temperature Sensing
  • Fan: Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control
  • Voltage: VCORE, GT, VCCSA, VNNAON, VCCIO, 1.8V_CPU, VDD2, 0.82V_PCH, 1.8VSB, 3V, 5V, 12V, BAT, 3VSB, 5VSB
  • Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
  • Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Support ATX PSU or 12V DC-in
  • Micro-ATX (9.6" x 9.6")
  • Supports Intel Core Ultra Desktop Processors (Series 2)
  • 1 PCIe5.0 x16*, 1 PCIe5.0 x4
  • 1 MCIO (PCIe5.0 x8 or 2 PCIe5.0 x4)*, 1 MCIO (PCIe4.0 x4)
  • Supports 2 M.2 (PCIe4.0 x4)
  • 8 SATA 6Gb/s
  • 2 SFP28 (25GbE)
  • 2 RJ45 (1GbE) by Intel i210
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)

In the Box

  • ASRock Rack W880D4U-2L2Q Motherboard
