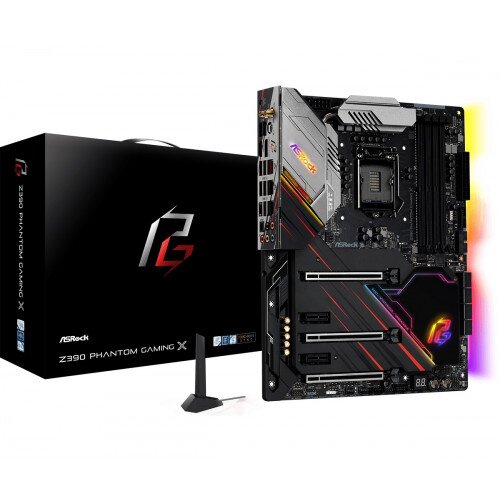

ASRock Z390 Phantom Gaming X Motherboard - Best Deals Online!

By: ASRock

Model: Z390 Phantom Gaming X

Sku: 9XOIHVXGK4

Availability: Out of stock New

Availability: Out of stock

  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • Intel 2T2R Dual Band Wi-Fi 6 (802.11ax) WiFi (2.4/5GHz)
  • Supports up to 2.4Gbps wireless network and BT v5.0
  • Phantom Gaming 2.5 Gigabit LAN, Dual Intel Gigabit LAN
  • Digital PWM, 14 Power Phase design
  • Supports DDR4 4266+(OC) MHz
  • 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • NVIDIA Quad SLI , AMD 3-Way CrossFireX
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Creative Sound Blaster Cinema 5
  • 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 5 USB 3.2 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)
  • 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • ASRock Polychrome SYNC
  • Hyper BCLK Engine II
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

REVOLUTIONARY Z390 MOTHERBOARDS: Your PC Transformed

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation IntelWi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

2.5G ETHERNET, HIGH TCP & UDP THROUGHPUT

Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

PREMIUM 60A POWER CHOKE

ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

CREATIVE SOUND BLASTER CINEMA5

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

In the Box

  • ASRock Z390 Phantom Gaming X Motherboard
  • ASRock Z390 Phantom Gaming X Motherboard (ATX Form Factor)
  • ASRock Z390 Phantom Gaming X Quick Installation Guide
  • ASRock Z390 Phantom Gaming X Support CD
  • 4 x Serial ATA (SATA) Data Cables (Optional)
  • ASRock SLI_HB_Bridge_2S Card (Optional)
  • ASRock WiFi 2.4/5 GHz Antenna (Optional)
  • ASRock Screwdriver (Optional)
  • 3 x Screws for M.2 Sockets (Optional)
  • 3 x Standoffs for M.2 Sockets (Optional)
