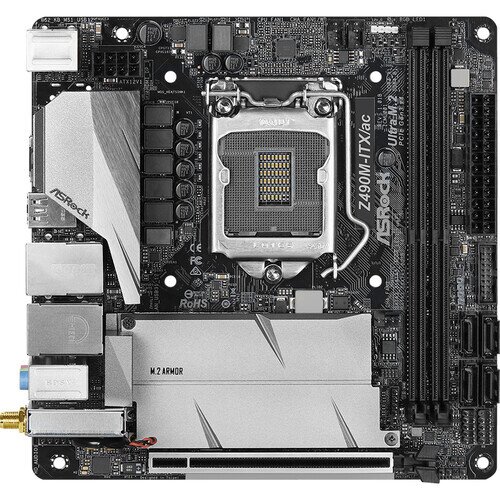

ASRock Z490M-ITX/ac Motherboard - Best Deals Online!

By: ASRock

Model: Z490M-ITX/AC

Sku: 8AV24M82G0

Availability: Out of stock New

Availability: Out of stock

  • CPU: Supports 10th Gen Intel Core Processors (Socket 1200), Digi Power design, 8 Power Phase design, Supports Intel Turbo Boost Max 3.0 Technology, Supports Intel K-Series unlocked CPUs, Supports ASRock BCLK Full-range Overclocking
  • Chipset: Intel Z490
  • Memory: Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 64GB, Supports Intel Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots
  • BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment
  • Graphics: Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1, Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1, Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc, Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) 30Hz, Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) 60Hz, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports, Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio
  • LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG), Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V), Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
  • Wireless LAN: Intel 802.11ac WiFi Module, Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports high speed wireless connections up to 433Mbps, Supports Bluetooth 4.2 / 3.0 + High speed class II
  • Slots: PCI Express 3.0 x16 Slot (PCIE1: x16 mode), Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  • Storage: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug,Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s), Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • Connector: RGB LED Header, Addressable LED Header, CPU Fan Connector (4-pin), Chassis Fan Connector (4-pin), Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 24 pin ATX Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection), USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  • Rear Panel I/O: 2 x Antenna Ports, PS/2 Mouse/Keyboard Port, HDMI Port, DisplayPort 1.4, USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection), USB 3.2 Gen1 Type-A Port (Supports ESD Protection), USB 3.2 Gen1 Type-C Port (Supports ESD Protection), 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone
  • Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Form Factor: Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  • OS: Microsoft Windows 10 64-bit
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Variety CPU Coolers Support

ASRock engineers took enormous effort to make the CPU backplate area big enough to accommodate the wide variety of CPU coolers.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

A SOLID M.2-SOLUTION PERFORMER

Dual M.2 For SSD

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

PCI-E STEEL SLOT

The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

  • Supports 10th Gen Intel Core processors (Socket 1200)
  • Supports DDR4 4400MHz+ (OC)
  • 1 PCIe 3.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen2 Type-A (Rear)
  • 4 USB 3.2 Gen1 (Rear Type A+C, 2 Front)
  • Dragon 2.5 Gigabit LAN, Intel Gigabit LAN
  • Intel 802.11ac WiFi + BT 4.2

In the Box

  • ASRock Z490M-ITX/ac Motherboard
  • 2 x SATA Data Cables
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
  • 2 x Screws for M.2 Sockets
  • Quick Installation Guide, Support CD, I/O Shield
