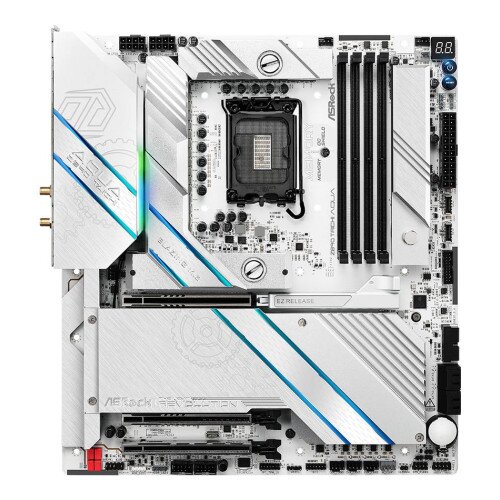

ASRock Z890 Taichi AQUA Motherboard
ASRock Z890 Taichi AQUA Motherboard Display Gallery Item 1
ASRock Z890 Taichi AQUA Motherboard - 2 Display Gallery Item 2
ASRock Z890 Taichi AQUA Motherboard - 3 Display Gallery Item 3
ASRock Z890 Taichi AQUA Motherboard - 4 Display Gallery Item 4
ASRock Z890 Taichi AQUA Motherboard - 5 Display Gallery Item 5
ASRock Z890 Taichi AQUA Motherboard - 6 Display Gallery Item 6

ASRock Z890 Taichi AQUA Motherboard - Best Deals Online!

By: ASRock

Model: Z890 Taichi AQUA

Sku: QDRU4VP6N7

Be the first to review this product

Sign up for price alert

AED 4,919

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Superb Productivity: PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
  • Thunderbolt 4 Type-C Ports (40 Gb/s)
  • Server-Grade Low-Loss PCB
  • 28+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
  • Memory OC Shield
  • Flexible Integrated I/O Shield
  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  • Marvell 10G LAN, Realtek 5G LAN
  • 802.11be Wi-Fi 7 Module
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
  • CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
  • Supports Intel Hybrid Technology
  • Supports Intel Turbo Boost Max 3.0 Technology
  • Supports Intel Thermal Velocity Boost (TVB)
  • Supports Intel Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
  • Supports ASRock Hyper BCLK Engine
  • Chipset: Intel Z890
  • Memory: Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC)*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 256GB
  • Supports Intel Extreme Memory Profile (XMP) 3.0x
  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics: Intel Xe LPG Graphics Architecture, 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  • WIMA Audio Capacitors (For Front Outputs)
  • ESS SABRE9219 DAC for Front Panel Audio (130dB SNR)
  • Individual PCB Layers for RL Audio Channel
  • Impedance Sensing on Rear Out port
  • Nahimic Audio
  • LAN: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
  • Support Wake-On-LAN
  • Support PXE 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
  • Wireless LAN: 802.11be 2x2 Wi-Fi 7 Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  • Supports 2.4GHz/5GHz/6GHz frequency band
  • Supports 320MHz channel bandwidth with 6GHz frequency band
  • 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.4
  • Supports MU-MIMO
  • Supports Killer LAN Software
  • Slots: CPU: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleSupports AMD CrossFire, 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)
  • Storage: CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Chipset: 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) ,modes, 4 x SATA3 6.0 Gb/s Connectors
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB CPU: 2 x Thunderbolt 4 Type-C (Rear), Chipset: 2 x USB 3.2 Gen2x2 Type-C (Front), 4 x USB 3.2 Gen2 Type-C (Rear), 4 x USB 3.2 Gen1 Type-A (Front), 4 x USB 3.2 Gen1 Type-C (Rear), 4 x USB 2.0 (Front)
  • Connector: 3 x Thermistor Cable Headers
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector (15 Gold Audio Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)
  • 1 x Dr. Debug with LED
  • 1 x Power Button with LED
  • 1 x Reset Button with LED
  • Rear Panel I/O: 2 x Antenna Ports
  • 1 x Optical SPDIF Out Port
  • 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)
  • 4 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
  • 4 x USB 3.2 Gen1 Type-C Ports (USB32_TC_56 support Ultra USB Power.)
  • 2 x RJ-45 LAN Ports
  • 1 x Clear CMOS Button
  • 1 x BIOS Flashback Button
  • 1 x Line Out Jack (Gold Audio Jack)
  • 1 x Microphone Input Jack (Gold Audio Jack)
  • Software and UEFI: ASRock Motherboard Utility (A-Tuning), Killer Control Center , ASRock Polychrome SYNC
  • UEFI: ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
Quantity:
  • Add to Wishlist
  • Add to Compare

Pioneering the future

Z890 Taichi AQUA sets a new industry standard with its pioneering hybrid cooling design, featuring the first-ever detachable VRM and M.2 water block. Additionally, the innovative All USB Type-C On Rear IO configuration marks a leap forward in connectivity. Our mission is to lead the future and establish a new benchmark for top-tier motherboards.

  • Supports Intel Core Ultra Processors (Series 2) (LGA1851)
  • 28+1+2+1+1 Power Phase, 110A SPS for VCore
  • 4 x DDR5 DIMMs Supports Dual Channel, up to 9600+ (OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • Graphics Output Options: 2 Thunderbolt 4 Type-C
  • Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
  • 4 SATA3 2 Blazing M.2 (PCIe Gen5 x4), 3 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 Thunderbolt 4 Type-C (Rear), 2 USB 3.2 Gen2x2 Type-C (Front), 4 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 Type-C (Rear), 4 USB 3.2 Gen1 Type-A (Front), 4 USB 2.0 (Front)
  • Marvell 10Gbps LAN, 5Gbps LAN
  • Killer 802.11be Wi-Fi 7 + Bluetooth
  • Supports Memory OC Shield, 20K Caps with 1000uF Capacitance, EZ Release Design

In the Box

  • ASRock Z890 Taichi AQUA Motherboard
  • 4 SATA Data Cables
  • USB 2.0 Bracket
  • ASRock WiFi 2.4/5/6 GHz Antenna
  • ARGB Splitter Cable
  • 3 Thermistor Cables
