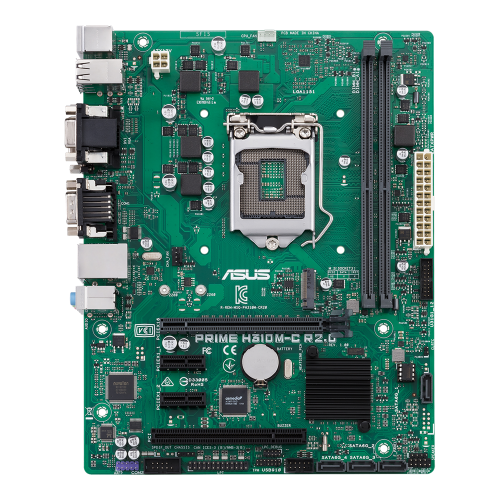

Buy ASUS PRIME H310M-C R2.0/CSM LGA1151 (300 Series) DDR4 M.2 VGA mATX Motherboard Now

By: ASUS

Model: PRIME H310M-C R2.0/CSM

Sku: HUY2BET8Y0

Availability: Out of stock New

Availability: Out of stock

  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • ASUS LPC debug header for more efficient troubleshooting
  • Event log for capturing and managing detailed system information
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Commercial BIOS kit to make customization faster and more efficient
  • Ensures safe BIOS updates
  • Reduces maintenance frequency and costs
  • Requires no extra software
  • Provides automatic update failure detection and recovery
  • CPU" Intel for 8th Generation Core Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU
  • Chipset: Intel H310
  • Memory: 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel= Extreme Memory Profile (XMP)
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : DVI-D/RGB ports
  • Expansion Slots: 1 x PCIe 3.0/2.0 x16 2 x PCIe 2.0 x1 1 x PCI
  • Storage: Intel H310 Chipset 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) 4 x SATA 6Gb/s port(s)
  • LAN: Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio: Realtek ALC887 8-Channel High Definition Audio CODEC 1 - Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports: Intel H310 Chipset 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  • Special Features: Bespoke Motherboard Design & Business Focused Features , ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen, ASUS Event Log: Record activities of system and provides information in BIOS, ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design, Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard, 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environmen
  • Support Disc: Drivers ASUS Commercial BIOS Kits ASUS Watchdog Timer
  • Note: 1. Use a chassis with HD audio module in the front panel to support an 8-channel audio output. 2. Use with amplified speaker is suggested. 3. When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_2 port.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Internationally Certified Business Motherboard

ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Self-recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module (TPM)

Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

Certified NIST SP 800-147

ASUS business motherboard is certified by the national computer security standards.

ASUS Reliant

Ensures consistent performance with the finest components and rigorous reliability testing

ASUS Trouble Shooting Solution

ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.

ASUS Control Center Express

ASUS Control Center Express is centralized IT management software designed to provide a convenient, effective, secure and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Center Express, your organization will be equipped to achieve success in even the most challenging modern IT environments.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

ASUS Commercial BIOS Kit

ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Intel H310 Chipset

The Intel H310 is a single-chipset design that supports 8th Generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and 10Gbps M.2 and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Ready for 8th Generation Intel LGA1151 Core processors

This motherboard supports 8th Generation Intel Core processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.

In the Box

  • ASUS PRIME H310M-C R2.0/CSM LGA1151 (300 Series) DDR4 M.2 VGA mATX Motherboard
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • M.2 Screw Package
  • Supporting DVD
  • User´s manual
