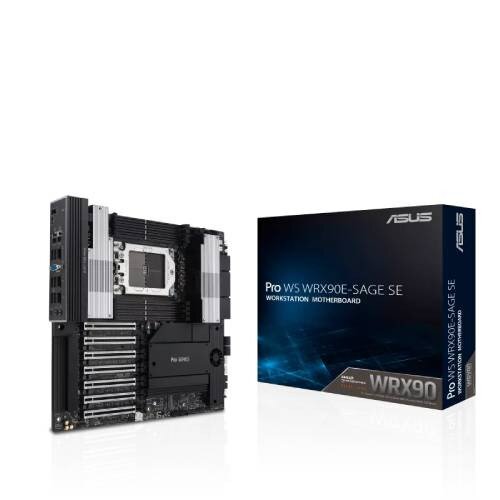

ASUS Pro WS WRX90E-SAGE SE MotherBoard
ASUS Pro WS WRX90E-SAGE SE MotherBoard Display Gallery Item 1
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 2 Display Gallery Item 2
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 3 Display Gallery Item 3
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 4 Display Gallery Item 4
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 5 Display Gallery Item 5
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 6 Display Gallery Item 6
ASUS Pro WS WRX90E-SAGE SE MotherBoard - 7 Display Gallery Item 7

ASUS Pro WS WRX90E-SAGE SE MotherBoard - Best Deals Online!

By: ASUS

Model: PRO WS WRX90E-SAGE SE

Sku: 6P4ITZOG1J

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series
  • Chipset: AMD WRX90 Chipset
  • Memory: 8 x DIMM slots, DDR5, ECC Registered Memory , 4 Channel Memory Architecture , Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product
  • Expansion Slots: AMD Ryzen Threadripper PRO 7000 WX-Series Processors: 6 x PCIe 5.0 x16 slots , PCIe 5.0 x16 slot (x8 mode)
  • Storage: Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports: AMD Ryzen Threadripper PRO 7000 WX-Series Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) , M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) , M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) , M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) / AMD WRX90 Chipset: 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device , 4 x SATA 6Gb/s ports , AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
  • Ethernet: Realtek 1Gb Ethernet (Dedicated, management LAN for AST2600) , Intel dual 10Gb Ethernet , ASUS LANGuard
  • USB: Rear USB (Total 9 ports): 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) , 6 x USB 10Gbps ports (6 x Type-A) , USB 2.0 ports (2 x Type-A ) / Front USB (Total 7 ports): USB 20Gbpsconnector (supports USB Type-C) , USB 5Gbps header supports 2 additional USB 5G ports , 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC: Impedance sense for front and rear headphone outputs , Internal audio Amplifier to enhance the highest quality sound for headphone and speakers , Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback / Audio Features: Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit, A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output, This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
  • Back Panel I/O Ports: 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C), 6 x USB 10Gbps ports (6 x Type-A), USB 2.0 port (2 x Type-A), VGA port, mini DisplayPort IN, Intel dual 10Gb , Ethernet ports, Realtek 1Gb Ethernet port, 2 x Audio jacks, BIOS FlashBack button, Clear CMOS button
  • Internal I/O Connectors: Fan and Cooling related: 4-pin CPU Fan header , 4-pin CPU OPT Fan header, W_PUMP+ header, 5 x 4-pin Chassis Fan headers, 2 x 4-pin VRM Fan header (with VRM FAN onboard), 4-pin M.2 Fan header (with M.2 FAN onboard) / Power related: 1 x 24-pin Main Power connectors, 2 x 8-pin +12V Power connectors, 2 x 8-pin PCIe to CPU power connectors, 2 x 8-pin PCIe Power connector / Storage related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 2 x SlimSAS port / USB: USB 20Gbps, connector supports USB Type-C, USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports / Miscellaneous : Chassis intrusion header, COM port header, FlexKey button, Front panel audio header (F_AUDIO), LN2 mode jumper, M.2 slot (Key E), 7 x ProbeIt measurement points, ReTry button, RSVD switch, Slow mode switch, Safe boot button, SPI TPM header (14-1 pin), Start button, 10-1 pin system panel header, Thermal sensor header
  • ASUS 5X PROTECTION III: DIGI+ VRM (- Digital power design with SPS), ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
  • ASUS Q-Design: M.2 Q-Latch, Q-Release Slim (with PCIe SafeSlot), Q-Code, Q-Connector, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
  • ASUS Thermal Solution: M.2 heatsink backplate and onboard, thermal pads, M.2 heatsink, Steel backplate, VRM heatsink design with active fans
  • ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, Clear CMOS button, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM
  • Bespoke Motherboard Design & Business Focused Features: 24/7 Reliability, Overcurrent Protection
  • BMC Related: BMC switch, BMC LAN fixed IP switch, IPMI switch, Message LED header, microSD card socket, 2 x LAN LED headers, Location LED header, Location button header, PSU_SMB header, SMART_PSU switch, VGA switch, VGA header (Dedicated Management for AST2600), VPP_I2C header
  • Software features : ASUS Exclusive Software: Armoury Crate, Fan Xpert 4, ASUS CPU-Z, / UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUSTeK. EzFlash Utility, FlexKey IT / Management software supported: ASUSControl Center Express(ACCE)
  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
  • Manageability: 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
  • Operating System: Windows 11, Windows 10 64-bit
  • Form Factor : EEB Form Factor
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

AMD sTR5 socket supports up to 96-core CPUs

Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.

Ultrafast connectivity

Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support

CPU and memory overclocking

Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)

Robust power and thermal design

32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.

PCIe Q-release Slim

Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.

Server-grade IPMI remote management and onboard BMC

Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.

Trusted stability

Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

In the Box

  • Pro WS WRX90E-SAGE SE
  • 2 x PCIe 8-Pin To CPU Power Cables
  • 24-Pin Power Cable (Y Cable)
  • 2 x Mini DisplayPort Cables
  • 4 x SATA 6Gb/s Cables
  • Thermistor Cable pack
  • Q-Connector
  • M.2 Q-Latch Package
  • AMI License Sticker
  • 4 x M.2 Rubber Packages
  • Screw Package For M.2 Key E
  • ACC Express Activation Key Card
  • Quick Start Guide
