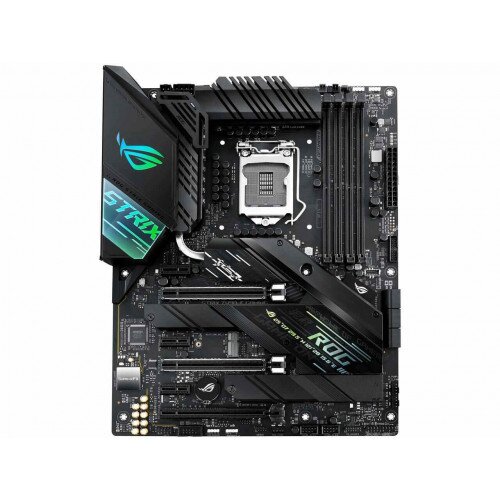

ASUS ROG STRIX Z490-F GAMING Motherboard
ASUS ROG STRIX Z490-F GAMING Motherboard Display Gallery Item 1
ASUS ROG STRIX Z490-F GAMING Motherboard - 2 Display Gallery Item 2

ASUS ROG STRIX Z490-F GAMING Motherboard - Best Deals Online!

By: ASUS

Model: ROG STRIX Z490-F GAMING

Sku: QBP0RX8WWE

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • CPU: Intel Socket 1200for 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset: Intel Z490
  • Memory: 4 x DIMM, Max. 128GB, DDR4, 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, OptiMem II
  • Graphic: Integrated Graphics Processor, DisplayPort 1.4, HDMI 1.4b, Graphics specifications may vary between CPU types.
  • Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology
  • Expansion Slots: Intel 10th Gen Processors, 2 x PCIe 3.0 x16, Intel Z490 Chipset, PCIe 3.0 x16 (max at x4 mode), 3 x PCIe 3.0 x1
  • Storage: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, Intel Z490 Chipset : M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Optane Memory Ready
  • LAN: Intel I225-V 2.5Gb Ethernet, ASUS LANGuard
  • Wireless Data Network: M.2 slot only (Key E) (Support CNVI interface)
  • Audio: ROG SupremeFX8-Channel High Definition Audio CODEC S1220A, - Dual OP Amplifiers, - Impedance sense for front and rear headphone outputs, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality120dBSNR stereo playback outputand113dBSNR recording input, - Supports up to 32-Bit/192kHz playback
  • Audio Feature: - SupremeFX Shielding Technology, - Gold-plated jacks, - Optical S/PDIF in port(s) at back panel, - LED-lit Audio Shielding, - Premium Japanese audio capacitors, - Audio Cover, Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • Rear USB Port: ( Total 8 ), 4 x USB 3.2 Gen 2 port(s)(3 x Type-A)(1 x USB Type-C +1 x USB Type-C), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), 2 x USB 2.0 port(s)
  • Front USB Port: ( Total 7 ), USB 3.2 Gen 1 port(s)(USB Type-C), 2 x USB 3.2 Gen 1 port(s)
  • ROG Exclusive Features: ROG Exclusive Software, - RAMCache III, - CPU-Z, - Overwolf, ROG Aluminum heatsink cover
  • Back I/O Ports: Intel I225-V 2.5Gb Ethernet, DisplayPort, HDMI, 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C), 2 x USB 3.2 Gen 1, 2 x USB 2.0, Optical S/PDIF out, USB BIOS FlashBack Button(s), 5 x Gold-plated audio jacks
  • BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Operating System: Windows 10 64-bit
  • Form Factor: ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

ALL ROUND PERFORMANCE

ROG Strix Z490-F Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.

LEADING CONNECTIVITIY

ROG Strix Z490-F Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.

PLAY YOUR OWN STYLE

The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. Together with the most diverse ROG ecosystem, Pair your ROG Strix Z490-F Gaming with other ROG products to customize a gaming rig that reflects your personal style.

ROG GIVES YOU MORE

ROG exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

5 WAY OPTIMIZATION

Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

In the Box

  • ASUS ROG STRIX Z490-F GAMING Motherboard
  • 4 x SATA 6Gb/s cable(s)
  • M.2 Screw Package
  • Supporting DVD
  • ROG Strix stickers
  • Cable ties pack(s)
  • Extension Cable for RGB strips (80 cm)
  • Extension cable for Addressable LED
  • Thermistor cable(s)
  • ROG Thank you card
  • 2-in-1 Rubber pad
  • Wi-Fi moving antenna
  • M.2 SSD screw package(s)
  • M.2 Key E screw package(s)
  • ROG key chain
  • User Manual
