Audio-Technica Immersive Audio Microphone BP3600 - Best Deals Online!

Capture stable, three-dimensional sound beds at sporting events, movie sets, concerts, festivals and more with the BP3600 immersive audio microphone. This practical, state-of-the-art broadcast solution allows you to establish a truly immersive audio image that can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing. The BP3600 consists of eight 3.5" (8.8 cm) long microphone assemblies that extend to form a cube, the capsules equidistant from the center and separated from one another by 15 cm. This eight-channel near-coincident array provides ample spaciousness and controlled separation not found in other all-in-one immersive audio microphones.

Eight-Channel Near-Coincident Array What Is That?

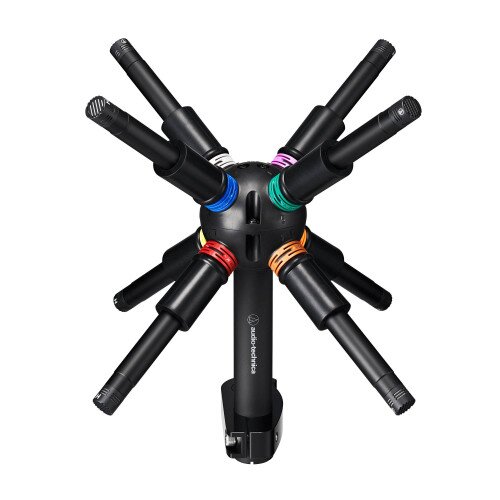

This is the typical response when customers see the BP3600 for the first time. The BP3600 consists of eight 3.5" (8.8 cm) long microphone assemblies that extend to form a cube. The hypercardioid capsules are equidistant from the center and create an eight-channel near-coincident array providing spacious and controlled separation.

8 XLR Outputs Analog Outputs

Each microphone connector features color-coded and numbered channel indicator rings matching one of the 8 individual XLR outputs for easy reference.

A Practical State-of-the-Art Broadcasting Solution Postproduction Workflow

Providing stable, three-dimensional audio for film, virtual entertainment, game audio design, and more.

Compact and Easy to Transport Fast Deployment

Designed to be compact and lightweight for quick, easy setup.

Live, Immersive Audio – MotoGP

The BP3600 is currently used by Dorna Sports to capture the real-time, live audio for MotoGP delivering an incredible immersive listening experience.

• The BP3600 immersive audio microphone is a practical, state-of-the-art broadcast solution for capturing ambient sound beds at sporting events, movie sets, concerts, festivals and more
• Captured audio image can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing
• 8 microphone assemblies attach and detach quickly from the main unit for easy setup and teardown
• 12 mm hypercardioid capsules keep the microphone small for discreet placement, while providing low diffuse-field correlation between signals
• Color-coded and numbered rings provide easy channel reference for each of the eight microphones
• Water protection caps guard TA3F microphone connectors against inclement weather
• A safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums
• 16-pin LEMO output connector is situated at the end of the microphone’s grip for easy attachment of the included breakout cable or extension cables (available separately)
• Includes AT8172 windscreen (x 8), mic isolation stand clamp, 5/8"-27 to 3/8"-16 threaded adapter, soft carrying case
• Optional accessories – Rycote BBG Windshields, Rycote BBG Windjammers, and 20 m (16.4' and 65.6') LEMO-to-LEMO extension cables – are available separately
• Requires 48V DC phantom power per channel

In the Box

• Audio-Technica Immersive Audio Microphone BP3600
• Case
• 16' Cable
• 8 Windscreen
