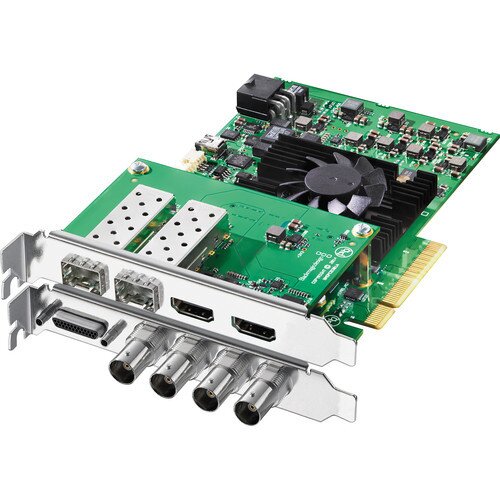

Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card Display Gallery Item 1

Buy Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card Now

By: Blackmagic Design

Model: BDLKHDEXTR4K12G

Sku: WPMN8VYQRK

Be the first to review this product

Sign up for price alert

AED 5,239

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Operating Temperature: 5° to 40° C (41° to 104° F)
  • Power Consumption: 30 Watts
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit, Linux
  • AES/EBU Audio Outputs: 2 Channels unbalanced.
  • SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/4K.
  • SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/4K.
  • HDMI Video Inputs: HDMI type A connector with support for 2160p60.
  • HDMI Video Outputs: HDMI type A connector with support for 2160p60.
  • HDMI Audio Inputs: 8 Channels embedded in SD/HD/4K
  • HDMI Audio Outputs: 8 Channels embedded in SD/HD/4K.
  • Sync Input: Tri-Sync or Black Burst.
  • SDI Video Inputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
  • SDI Video Outputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
  • Analog Audio Inputs: 2 Channels of professional balanced analog audio via XLR connectors.
  • Analog Audio Outputs: 2 Channels of professional balanced analog audio via XLR connectors.
  • Optical Fiber Inputs/Outputs (Optional): 2 x 12Gb/s Optical Fiber.
  • AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter.
Quantity:
  • Add to Wishlist
  • Add to Compare

Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G‑SDI! You get dual link multi rate 12G‑SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10‑bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

In the Box

  • Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card
  • Breakout Cable for Analog I/O and RS-422 Control
