Blackmagic Design DeckLink Mini Recorder 4K Capture Card
Blackmagic Design DeckLink Mini Recorder 4K Capture Card Display Gallery Item 1

Blackmagic Design DeckLink Mini Recorder 4K Capture Card Available Now

By: Blackmagic Design

Model: BDLKMINIREC4K

Sku: 9D5DXBJKTO

Be the first to review this product

Sign up for price alert

AED 1,059

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • HDMI 2.0b Video Inputs: 4
  • Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
  • HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
  • Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • HDMI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8‑bit RGB 4:4:4 in all DVI modes.
  • Digital Video Interface (DVI) Standards: 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
  • Multiple Rate Support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
  • Operating Systems: Mac 11.1 Big Sur,Mac 12.0 Monterey or later.Windows 8.1, 10 and 11, all 64-bit, Linux
  • Power Consumption: 23 W
  • Operating temperature: 5° to 40° C (41° to 104° F)
  • Relative Humidity: 0% to 90% non-condensing
Quantity:
  • Add to Wishlist
  • Add to Compare

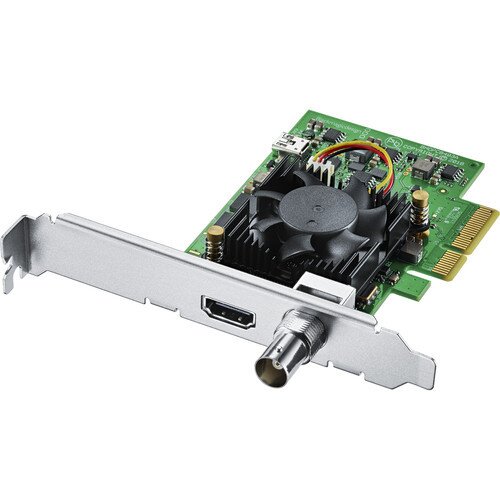

DeckLink Mini Recorder 4K is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

In the Box

  • Blackmagic Design DeckLink Mini Recorder 4K Capture Card
  • Low-Profile Bracket
