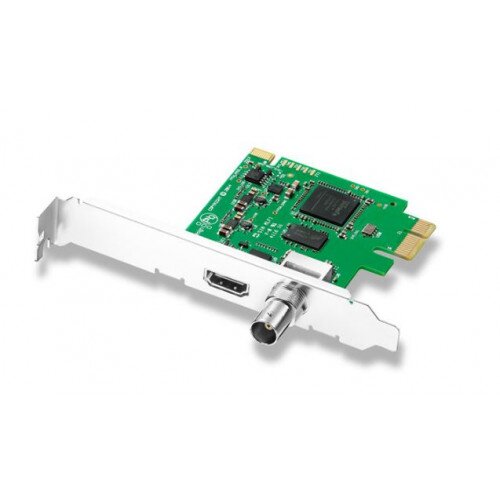

Blackmagic Design DeckLink Mini Recorder Capture Card
Blackmagic Design DeckLink Mini Recorder Capture Card Display Gallery Item 1

Blackmagic Design DeckLink Mini Recorder Capture Card Available Now

By: Blackmagic Design

Model: BDLKMINIREC

Sku: X1S8IXQTD7

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Operating Temperature: 5° to 40° C (32° to 104° F)
  • Power Consumption; 5 Watts
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit, Linux
  • HD to SD Down Conversion: Software based down conversion during video capture.
  • Colorspace Conversion: Hardware based real time.
  • Color Precision: 8-bit & 10-bit.
  • Video Sampling: YUV 4:2:2.
  • Color Space: REC 601, REC 709.
  • SDI Compliance: SMPTE 259M and 292M.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Video Input: 10-bit SD/HD switchable.
  • SDI Audio Input: 8 channels embedded in SD and HD.
  • HDMI Video Input: HDMI 1.4 type A connector.
  • HDMI Audio Input: 8 Channels embedded in SD and HD.
  • Computer Interface: PCI Express 1 lane, compatible with 4, 8 and 16 lane PCI Express slots.
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Record uncompressed 10-bit video from SDI and HDMI video sources. DeckLink Mini Recorder switches between SD and HD video formats and is perfect for building ingest servers or other video solutions where you need to capture only in a low profile card! Includes two PCI Express shields for both full height and low profile slots.

In the Box

  • Blackmagic Design DeckLink Mini Recorder Capture Card
