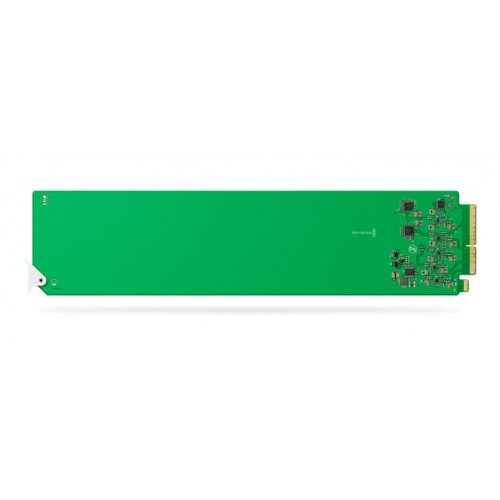

Blackmagic Design OpenGear Converter SDI Distribution
Blackmagic Design OpenGear Converter SDI Distribution Display Gallery Item 1

Blackmagic Design OpenGear Converter SDI Distribution Available Now

By: Blackmagic Design

Model: CONVOPENGSDIDA

Sku: Z6RXOLM4D4

Be the first to review this product

Sign up for price alert

AED 2,409

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • SDI Video Input: Switchable between SD, HD and 3G-SDI.
  • SDI Video Output: 9 outputs automatically match the SDI video input.
  • Multi Rate Support: Auto detection of SD, HD and Level B 3G-SDI inputs.
  • Reclocking: Yes
  • SD Format Support: 525i59.94 NTSC, 625i50 PAL
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Precision: 4:2:2 and 4:4:4
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically selects between SD, HD and 3G-SDI.
  • ASI Support: Yes
  • 2K Format Support: 1080p29.98, 1080p24, 1080p25, 1080PsF23.98, 1080PsF24, 1080PsF25
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operating Temperature: 0° to 40° C (32° to 104° F)
Quantity:
  • Add to Wishlist
  • Add to Compare

When needing to send the same signal to several devices at once, OpenGear Converter SDI Distribution handles the task perfectly. Supports all SD and HD video formats up to 1080p60. OpenGear Converter SDI Distribution also handles ASI. What’s more, it’s compatible with ancillary data and embedded audio.

In the Box

  • Blackmagic Design OpenGear Converter SDI Distribution
