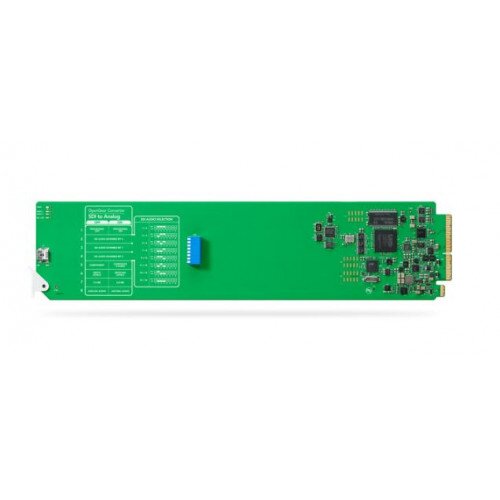

Blackmagic Design OpenGear Converter SDI to Analog
Blackmagic Design OpenGear Converter SDI to Analog Display Gallery Item 1

Blackmagic Design OpenGear Converter SDI to Analog Available Now

By: Blackmagic Design

Model: CONVOPENGASA

Sku: YZJJ0NGGMI

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • SDI Video Input: Switchable between SD, HD and 3G-SDI.
  • SDI Video Output: Automatically matches the SD, HD and 3G-SDI video input.
  • Analog Video: Component, NTSC, PAL and S-Video
  • SDI Redundant Input: Automatically switches over if main SDI input is lost.
  • Multi Rate Support: Auto detection of SD, HD and Level B 3G-SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes
  • Analog Audio: 2 channels of professional balanced digital with openGear standard 3 pin connections.
  • AES/EBU Digital Audio: 4 channels of professional balanced digital with openGear™ standard 3 pin connections.
  • Software Control: Mac and Windows software upgrade via USB.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operating Temperature: 0° to 40° C (32° to 104° F)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Includes everything you need to convert from SDI to analog HD/SD component, NTSC and PAL video out, plus balanced AES/EBU and analog audio out. Easily connect to Betacam SP, VHS and video monitors. Features a built in hardware down converter to connect HD-SDI video to SD equipment!

In the Box

  • Blackmagic Design OpenGear Converter SDI to Analog
