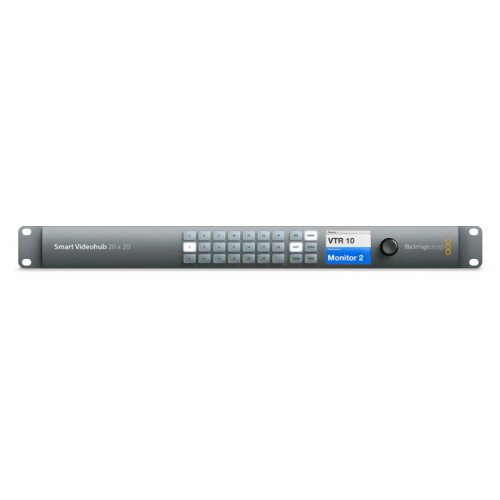

Blackmagic Design Smart 6G-SDI Videohub 20 x 20
Blackmagic Design Smart 6G-SDI Videohub 20 x 20 Display Gallery Item 1
Blackmagic Design Smart 6G-SDI Videohub 20 x 20 - 2 Display Gallery Item 2

Blackmagic Design Smart 6G-SDI Videohub 20 x 20 - Best Deals Online!

By: Blackmagic Design

Model: VHUBSMART6G2020

Sku: SZJMSB8VA6

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • SDI Video Inputs: 20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
  • SDI Video Outputs: 20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G.
  • Video Input Re-Sync: None.
  • SDI Reclocking: On all SDI outputs
  • Reference Input: Tri-Sync or Black Burst.
  • Control Panel Connection: Ethernet.
  • Serial Control Connection: RJ-7 RS-422.
  • Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
  • Router Control: 21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
  • Router Configuration: Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.
  • RS-422 Router Control: input for controlling router crosspoint switching.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Power Supply: Internal 90 - 240V AC. IEC power cable required.
  • Power Consumption: 34 Watts
  • Operating temperature: 0° to 40° C (32° to 104° F)
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Smart Videohub 20x20 is a larger advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.

In the Box

  • Blackmagic Design Smart 6G-SDI Videohub 20 x 20
