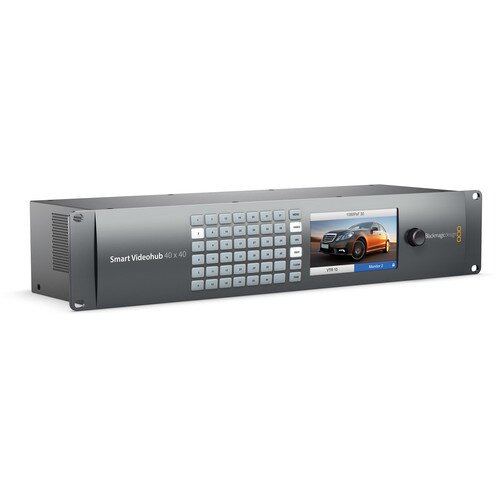

Blackmagic Design Smart 6G-SDI Videohub 40 x 40
Blackmagic Design Smart 6G-SDI Videohub 40 x 40 Display Gallery Item 1
Blackmagic Design Smart 6G-SDI Videohub 40 x 40 - 2 Display Gallery Item 2

Blackmagic Design Smart 6G-SDI Videohub 40 x 40 - Best Deals Online!

By: Blackmagic Design

Model: VHUBSMART6G4040

Sku: 8QZXZIUB3C

Be the first to review this product

Sign up for price alert

AED 14,169

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • SDI Video Inputs: 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
  • SDI Video Outputs: 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
  • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G.
  • Video Input Re-Sync: None
  • SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
  • Reference Input: Tri-Sync or Black Burst.
  • Reference Output: Reference terminating loop output.
  • Control Panel Connection: Ethernet.
  • Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
  • Router Configuration: Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Displays: Built in 5 inch LCD for video and menu settings.
  • Power Supply: 2 x Internal 90 - 240V AC. IEC power cables required.
  • Power Consumption: 58 Watts
  • Operating temperature: 0° to 40° C (32° to 104° F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing so that you can quickly route your video by looking at it! Smart Videohub 40x40 fits a massive 80 multi rate 6G-SDI connections in a compact two rack unit size!

In the Box

  • Blackmagic Design Smart 6G-SDI Videohub 40 x 40
