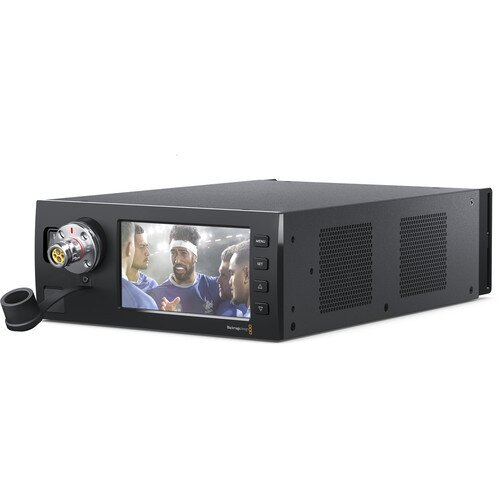

Blackmagic Design Studio Fiber Converter - Best Deals Online!

By: Blackmagic Design

Model: CINEURSANWFRSTUD

Sku: LPZKB76O96

AED 13,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Optical Fiber Input: SMPTE Hybrid Fiber Optic, with Female SMPTE 304 connector.
  • SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
  • SDI Video Output: 2x 12G SDI for Ultra HD up to 60p.
  • Computer Interface: USB-C.
  • Optical Fiber Outputs: Optical I/O via 10 Gb-E, (not currently active).
  • Balanced XLR Audio Outputs: 4x camera analogue audio outputs.
  • Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 709, REC 2020.
  • Audio Sampling: Television standard sample, rate of 48Khz, 24 bit A/D conversion.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
  • Power Supply: 110 - 240V AC input.
  • Operating Temperature: 0° to 50° C (32° to 122° F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

In the Box

  • Blackmagic Design Studio Fiber Converter
