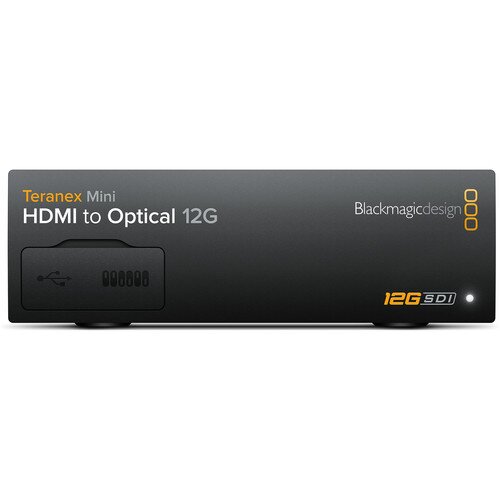

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter
Blackmagic Design Teranex Mini HDMI to Optical 12G Converter Display Gallery Item 1
Blackmagic Design Teranex Mini HDMI to Optical 12G Converter - 2 Display Gallery Item 2

Buy Blackmagic Design Teranex Mini HDMI to Optical 12G Converter Now

By: Blackmagic Design

Model: CONVNTRM/MB/HOPT

Sku: HXXE9OCC09

Be the first to review this product

Sign up for price alert

AED 2,449

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • SDI Video Inputs: Optional 3G/6G/12G Optical SFP input.
  • SDI Video Outputs: 12G‑SDI.
  • HDMI Video Inputs: HDMI 2.0 type A connector with support for 2160p60.
  • Optical Fiber Connection (optional): Optional 3G/6G/12G optical SFP output.
  • Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI HDMI video input.
  • Embedded Audio Support: 16 channels.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB and Ethernet.
  • Reclocking: Yes
  • Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
  • Digital Audio Inputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • SDI Video Sampling: 4:2:2 and 4:4:4.
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
  • SDI Color Space: REC 601, REC 709
  • Software Control: Mac and Windows software upgrade via USB or Ethernet.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operational Voltage Range: 90 - 240V AC
  • Power Consumption: 16 Watts
  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
Quantity:
  • Add to Wishlist
  • Add to Compare

Now you can convert from HDMI to SDI and SMPTE optical fiber! Simply insert the SMPTE optical fiber module of your choice to send video and embedded audio over massive distances using 3G, 6G, or 12G-SDI optical fiber! You get professional 12G-SDI and XLR connections, an up converter for viewing SD and HD sources on Ultra HD displays plus ethernet for remote admin control. Optical fiber SFP module sold separately so you can purchase the SMPTE compatible 3G-SDI, 6G-SDI or 12G-SDI SFP to suit your workflow. You can even add an optional Smart Panel to add LCD monitoring and push button controls to your Teranex Mini!

In the Box

  • Blackmagic Design Teranex Mini HDMI to Optical 12G Converter
