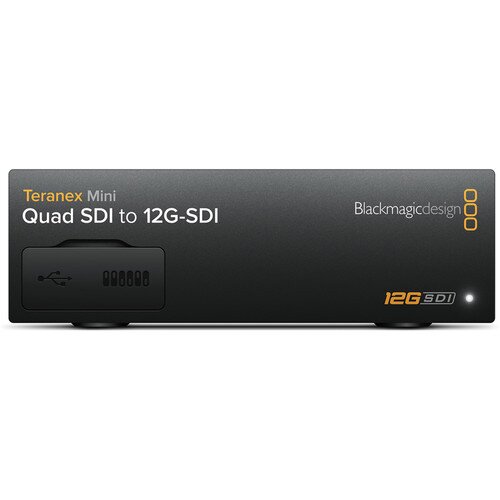

Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter Display Gallery Item 1
Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter - 2 Display Gallery Item 2
Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter - 3 Display Gallery Item 3

Buy Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter Now

By: Blackmagic Design

Model: CONVNTRM/DA/QDSDI

Sku: 1F64PICLGG

Be the first to review this product

Sign up for price alert

AED 2,449

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • SDI Video Inputs: 4 x 12G-SDI SD/HD/2K/4K auto switching.
  • Embedded Audio Support: 16 channels.
  • Updates and Configuration: USB or Ethernet
  • SDI Video Outputs: 2 x 12G‑SDI.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
  • Reclocking: Yes
  • 2K Video Standards: 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Space: YUV & RGB
  • Software Control: Mac and Windows software upgrade via USB and Ethernet.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operational Voltage Range: 90 - 240V AC
  • Power Consumption: 16 Watts
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Operating Temperature: 0° to 40°C (32° to 104°F)
Quantity:
  • Add to Wishlist
  • Add to Compare

Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

In the Box

  • Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter
