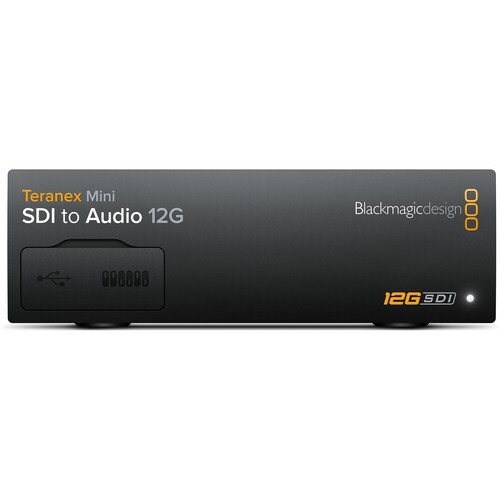

Blackmagic Design Teranex Mini SDI to Audio 12G Converter
Blackmagic Design Teranex Mini SDI to Audio 12G Converter Display Gallery Item 1
Blackmagic Design Teranex Mini SDI to Audio 12G Converter - 2 Display Gallery Item 2
Blackmagic Design Teranex Mini SDI to Audio 12G Converter - 3 Display Gallery Item 3

Blackmagic Design Teranex Mini SDI to Audio 12G Converter Price in UAE

By: Blackmagic Design

Model: CONVNTRM/CA/SDIAU

Sku: CC2BO6O9EH

Be the first to review this product

Sign up for price alert

AED 2,489

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • SDI Video Inputs: 12G-SDI SD/HD/2K/4K auto switching.
  • SDI Video Outputs: 12G-SDI loop output.
  • Embedded Audio Support: 16 channels.
  • Optical Audio Output: S/PDIF Signal with TOSLINK Connector.
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
  • Updates and Configuration: USB or Ethernet.
  • Reclocking: Yes
  • Analog Audio Outputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
  • Digital Audio Outputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • SDI Video Sampling: 4:2:2 and 4:4:4.
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4K DCI 23.98p,, 4K DCI 24p 4K DCI 25p
  • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • Software Control: Mac and Windows software upgrade via USB and Ethernet.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10.
  • Operational Voltage Range: 90 - 240V AC
  • Power Consumption: 16 Watts
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Operating Temperature: 0° to 40°C (32° to 104°F)
Quantity:
  • Add to Wishlist
  • Add to Compare

De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

In the Box

  • Blackmagic Design Teranex Mini SDI to Audio 12G Converter
