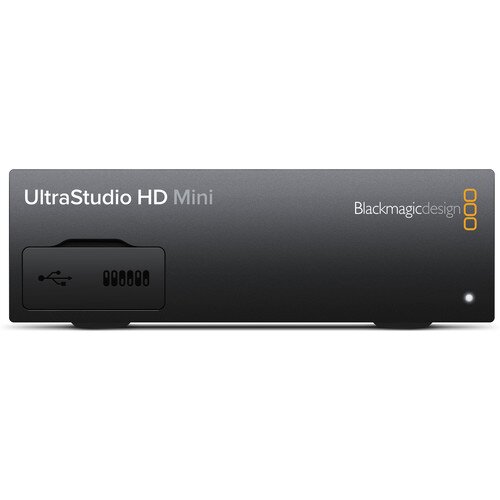

Blackmagic Design UltraStudio HD Mini
Blackmagic Design UltraStudio HD Mini Display Gallery Item 1
Blackmagic Design UltraStudio HD Mini - 2 Display Gallery Item 2
Blackmagic Design UltraStudio HD Mini - 3 Display Gallery Item 3

Blackmagic Design UltraStudio HD Mini - Best Deals Online!

By: Blackmagic Design

Model: BDLKULSDMINHD

Sku: MID72M6FNN

Be the first to review this product

Sign up for price alert

AED 2,989

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Operating Temperature: 5° to 40° C (32° to 104° F)
  • Power Requirements: Powered by Thunderbolt cable. Requires computer with a Thunderbolt 3 USB-C port.
  • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 8.1 and 10, both 64-bit.
  • Device Control: RS-422 deck control.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: None
  • 4K Video Standards: None
  • Audio Sampling: Television rate of 48kHz and 24 bit.
  • SDI Video Sampling: 4:2:2/4:4:4
  • Color Space: REC 601, REC 709.
  • SDI Video Inputs: 1 x 3Gb/s SD/HD switchable.
  • SDI Video Outputs: 2 x 3Gb/s SD/HD switchable, supports fill and key.
  • Analog Audio Inputs: 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
  • Analog Audio Outputs: None, embedded audio only.
  • SDI Rates: 270Mb, 1.5G, 3G
  • Optical SDI: None
  • SDI Audio Inputs: 16 Channels embedded in SD and HD.
  • SDI Audio Outputs: 16 Channels embedded in SD and HD.
  • HDMI Audio Outputs: 2 Channels embedded in SD and HD.
Quantity:
  • Add to Wishlist
  • Add to Compare

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!

In the Box

  • Blackmagic Design UltraStudio HD Mini
  • DaVinci Resolve SD Card
  • SD Card
