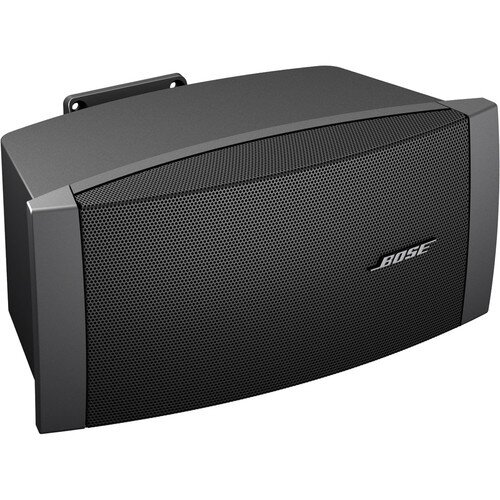

Bose Professional FreeSpace DS 100SE Loudspeaker - Black
Bose Professional FreeSpace DS 100SE Loudspeaker - Black Display Gallery Item 1
Bose Professional FreeSpace DS 100SE Loudspeaker - Black - 2 Display Gallery Item 2
Bose Professional FreeSpace DS 100SE Loudspeaker - Black - 3 Display Gallery Item 3

Bose Professional FreeSpace DS 100SE Loudspeaker - Black Available Now

By: Bose

Model: 40806

Sku: PORP4J7YHK

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Frequency Response (+/-3 dB): 75 Hz - 18 kHz
  • Frequency Range (-10 dB): 60 Hz - 20 kHz
  • Nominal Dispersion: 180° H x 75° V
  • Recommended High-Pass Filter: 55 Hz high-pass filter
  • Loudspeaker EQ: Recommended
  • Overload Protection: Lamp
  • Long-Term Power Handling: 100 W (400 W peak)
  • Sensitivity (SPL / 1 W @ 1 m): 85 dB SPL
  • Maximum SPL @ 1 m: 105 dB SPL (111 dB SPL peak)
  • Nominal Impedance: 8 Ω (transformer bypassed)
  • Transformer Taps: (70/100 V) 70 V: 12.5 W, 25 W, 50 W, 100 W / 100 V: 25 W, 50 W, 100 W
  • Driver Compliment: Two (2) 2.25" (57 mm) Twiddler drivers in an Articulated Array speaker configuration, 5.25" (133 mm) woofer
  • Enclosure: PC/ABS, textured
  • Grille: Powder-coated steel grille
  • Environmental: Outdoor per IEC 529 IP55
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Bose FreeSpace DS 100SE is the premier member of the DS loudspeaker family. It is a high-performance, full-range surface-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. The DS 100SE features a rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz.

  • Extended-range, high-performance loudspeaker with two (2) 2.25" (57 mm) Twiddler drivers and a single 5.25" (133 mm) woofer in a ported enclosure designed for surface-mounted foreground and background music and paging applications
  • Proprietary Articulated Array speaker configuration provides 180° H x 75° V coverage out of the box when the loudspeaker is mounted horizontally. Array can be rotated for horizontal or vertical use
  • Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes

In the Box

  • Bose Professional FreeSpace DS 100SE Loudspeaker
  • Wall Mount Bracket
