The EOS C500 fully supports both 4K and 2K image resolutions; as such, it is the ideal choice for demanding video productions across a wide gamut that ranges from high-quality commercials and TV dramas to motion-picture releases. A 4K workflow offers four times the resolution of standard high-definition acquisition, resulting in life-like theatrical presentations, a familiar, film-style workflow, full versatility during post-production, and added flexibility for visual effects.
Canon design engineers have developed a 4K/2K acquisition platform and matching workflow for the video and motion-picture industries. With 4K rapidly moving to become the de facto standard for theatrical projection, the need for high-resolution acquisition is a production reality. The EOS C500 is designed to fit seamlessly with projects shot entirely in 4K, or for mixed 4K/2K productions. Coupled to external data recorders, the EOS C500 is a true “4K powerhouse,” while still retaining the flexibility to handle standard HD workflows.
The EOS C500 lets you capture images in a choice of 4K Cinema RAW and 4K Half Cinema RAW modes at frame rates up to, respectively, 60 fps and 120 fps, with 10-bit resolution. For enhanced flexibility, these two Bayer RAW modes are offered in a choice of Digital Cinema Initiatives/DCI 1.895:1 or Quad Full High Definition/QFHD 16:9 aspect ratios.
4K RAW data output from the EOS C500 image sensor can be recorded using about one-third of the space required for 4K RGB data, and Cinema RAW-based recording systems offer an enhanced degree of creative freedom during post-processing.
Primary applications for Cinema RAW include video production for high-end commercials and major motion-picture releases, in addition to footage for high-quality visual effects. 4K Cinema RAW data output can be processed using the Cinema RAW Development software application, which is available through the Canon website.
For trouble-free exchange of video and audio material, the EOS C500 uses the industry-standard Material Exchange Format (MXF) for its internal recording file structure. With MXF, video and audio are interwrapped into a single file, together with important metadata about the project. In addition to providing the highest level of compatibility with non-linear editing/NLE systems, use of MXF-format files offers integration with high-end, networked DAM (Digital Asset Management) and MAM (Media Asset Management) systems used by many TV networks and production studios.
When HD is required – either as the acquisition format, or as a proxy file system for 4K output – the EOS C500 supports the highest image quality, with Full HD 1920x1080 resolution, 50 Mbps bit rate and 4:2:2 color sampling. The system delivers outstanding results via its powerful built-in MPEG-2 XF codec and recording to Compact Flash/CF card installed within the camera body. MPEG-2 compression is fully compatible with existing industry infrastructures and non-linear editing platforms.

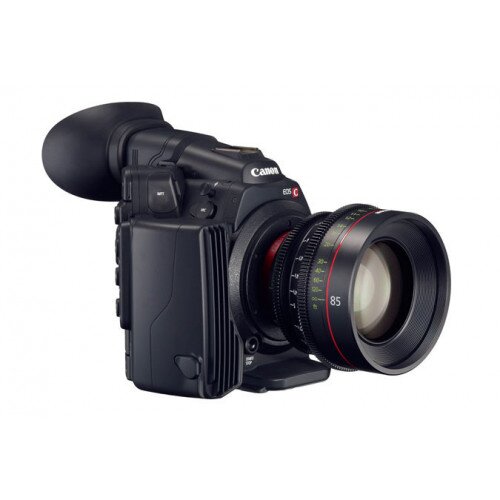

The EOS C500 features a Canon-designed Super 35mm, 16:9 CMOS sensor with full 4K resolution capable of delivering pristine-quality, 8.85-megapixel images needed for commercial applications with minimal moire and other artifacts. Based on the same technology as the well-received EOS C300, the EOS C500's High-Sensitivity CMOS image sensor has the additional ability to directly output full 4K, 10-bit RAW Bayered data through two dedicated 3G-SDI connectors. The sensor's large, Super 35mm size lets you capture cinematic shallow depth-of-field imagery, yet maintain the enhanced image characteristics demanded by professional cinematographers.
During data transfer, the uncompressed information from the EOS C500's 4096x2160 Bayer-type CMOS image sensor is read out and transferred as RAW data to the 3G-SDI output. Prior to editing and/or image processing, this pristine RAW data is recomposed using a process known as de-Bayering to extract the highest amount of detail information from the camera's sensor, and capable of delivering truly breathtaking results for both film and TV projects.
By maintaining a wide pixel pitch, the sensor maximizes the amount of light that falls on each photo site, thereby enhancing the EOS C500's sensitivity and reducing image noise. By using a single CMOS sensor to capture individual Red, Green and Blue channels for each Full HD 1920x1080 frame, the EOS C500 produces color performance that is comparable with conventional three-chip designs. Of course, during 4K recording, the EOS C500 uses a debayering algorithm to process and output a full-resolution 4096x2160 image.
The EOS C500 features a log gamma setting that sets the camera to maximize dynamic range and provide wide exposure latitude. The files produced using log format are ideal for post-production processes where corrections, color matching and grading are applied. It provides users with a high level of creative freedom in post-production without substantially degrading the image quality. When using Canon Log, the EOS C500 can provide a dynamic range up to 800%. Canon Log Gamma can be applied in any EOS C500 recording or output mode.
To integrate easily into the working style and equipment array of film crews and production houses, the EOS C500 with a Canon EF-lens mount is completely compatible with all of Canon's EF lenses, including compact primes, super telephotos, specialty Tilt-Shift, Macro and Fisheye lenses - over 60 in all.
A unique combination of the world's most advanced optical, microelectronic, and precision manufacturing technologies, the Canon's EF lenses, compatible with the EOS C500, are perfected in Canon's laboratories and proven in the field. Whatever the application, whatever the budget, there are Canon EF lenses perfect for nearly every scenario. Their compatibility not only affords the Cinema EOS access to some of the finest optics on the market, it opens up myriad possibilities with Canon's superlative specialty lenses, including a range of Tilt-Shift lenses, Close-up lenses and even Canon's amazing EF 8-15mm f/4L Fisheye Zoom.
Canon EF Cinema lenses are designed and engineered to meet or exceed the exacting standards of working professionals. Every Canon EF Cinema lens is designed to fulfill contemporary 4K production standards, surpassing the performance requirements of any HD imaging system. Zoom lenses feature large aspherical lens elements to achieve sharp, consistent images in every shooting situation. Geared inner focusing minimizes focus-induced changes in the angle of view, rendering focus breathing virtually zero. The 11-blade aperture diaphragms ensure smooth out-of-focus areas and beautiful bokeh - and innovative glass construction counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. EF Cinema lenses provide markings on angled surfaces on both sides of the barrel, making it easy to read focus and aperture settings from behind or either side of the camera. Focus markings can be switched from standard labeling to metric. Control rings are designed to maintain the proper amount of resistance with consistent operating torque. EF Cinema lenses share uniform gear position, diameter and rotation angle as well as front lens diameters, enabling the film crew to quickly change to another Canon zoom or prime lens or compatible third-party accessories like matte boxes and rods without adjustments.
Canon's Cinema EF Zoom lenses offer unrivaled optical performance for demanding high-end productions, available in both EF and PL mount configurations. With fluorite, aspherical lens elements and advanced optical design, these unequalled Cinema EF Zoom lenses are capable of 4K-image reproduction. The wide-angle CN-E14.5-60mm T2.6 L S/SP provides industry-leading breadth of range; the telephoto CN-E30-300mm T2.95-3.7 L S/SP rivals best-in-class zoom magnification and telephoto focal length. Together these lenses cover the range most commonly used in cinema shooting.
The brilliant series of Cinema EF Prime lenses offers spectacular 4K-image quality in lightweight, compact designs. Three models for EF mount cameras - CN-E24mm T1.5 L F, CN-E50mm T1.3 L F, and CN-E85mm T1.3 L F - offer consistent form factors and marking optimized for motion picture production. Whether you shoot with a Canon EOS C500 or EOS DSLR, the compact and consistent lens design makes for excellent handling. Audiences will also love the results from the 11-blade aperture diaphragms, fast t-stops and proven Canon lens elements.
Designed from the ground up to maximize shooting comfort and usability, the EOS C500's modular design enables different components to be added or removed as required to meet the needs of a particular shooting scenario, and also to increase the comfort of a camera operator. In addition to the core camera body, the EOS C500 features a low-angle, camera-handle extension plus a removable LCD Monitor and control panel with XLR audio inputs. (However, to accommodate the EOS C500's 3G SDI outputs, the handgrip is fixed in a single position and not removable.)
The EOS C500 features an Ultra-High Resolution 1.55 Megapixel EVF with approximately 100% field-of-view coverage for comfortable viewing and accurate image composition, focus and color adjustment. The viewfinder's angle is adjustable for additional user comfort. The Camera Control Unit features a 4-inch, 1.23 Megapixel rotating LCD screen that offers approximately 100% field-of-view coverage. Mounted onto the camera control pad, the display panel can be freely rotated to provide the operator with flexible viewing angles and convenient access to the control panel. For added flexibility, the panel can also be mounted in different positions to accommodate different viewing positions required by the operator, director or producer. Such flexibility and ease of movement makes the display easier to use than a rigid design that can be easily bumped during a shoot.
