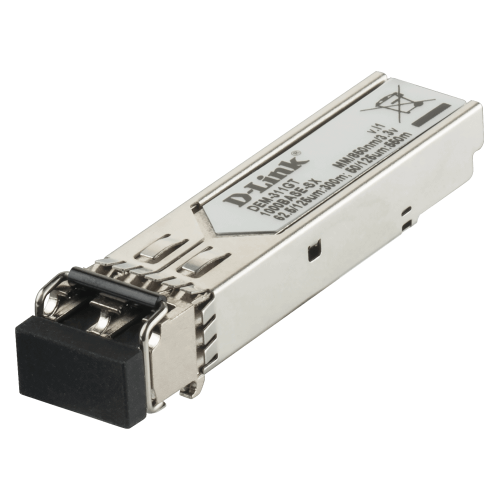

D-Link 1000BASE-SX Multi-Mode 550 M LC SFP Transceiver Available Now

By: D-Link

Model: DEM-311GT

Sku: DHSEDPOK0F

AED 269

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Industry-leading performance and affordability.
  • Transceiver Type: SFP
  • Cable Type: - multi-mode 50/125um fiber: reach 550m - multi-mode 62.5/125um fiber: reach 275m
  • Power: 3.3V
  • Safety: FDA/CDRH, TUV, cUL
  • Hot Pluggable: Yes
  • MSA Compliant: Yes
  • RoHS Compliant: Yes
  • Hardware version: F1
  • connector: Duplex LC Connector
  • single/bi Direction: single-direction
  • Wavelength: 850 nm
  • Output Optical Power (TX Optical Power): MAX.: -4 dBm
  • Interface: MIN.: -17 dBm
  • Input Optical Power (RX Optical Power): MAX.: -3 dBm
  • Sensitivity: -17 dBm
  • Max Input Current: 240mA
  • MAX Power Budget: 13dB
  • Heat Generated: 1.54kJ/h
  • Power Budget (MIN Power Budget): 7.5dB
  • Operation Temperature: 0-70°C
  • Storage Temperature: -40-85°C
  • Humidity (Operating): 10% ~ 90%
  • Humidity (Storage): 5% ~ 90%
  • Speed: 1Gbps
  • Compliant Standard: IEEE-802.3z 1000BASE-SX
  • Fiber Channel FC-PI standard: 100-M5-SN-I and 100-M6-SN-I
  • Fiber Media support: Multi-Mode
  • Distance: 550M
Quantity:
  • Add to Wishlist
  • Add to Compare

High-Speed Network Transmission for Business Environments

D-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-311GT is a high-performance 850 nm multi-mode SFP transceiver supporting Gigabit speeds on multi-mode fiber for distances of up to 550 m. The unit features a metal housing to reduce EMI and to increase durability.

Hot Pluggable

All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

Small Form Pluggable (SFP) Package

The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.

  • 850 nm multi-mode transceiver
  • Maximum distance of up to 550 m
  • Duplex LC connector
  • MSA, RoHS-compliant
  • Hot pluggable

In the Box

  • D-Link 1000BASE-SX Multi-Mode 550 M LC SFP Transceiver
  • User Manual
