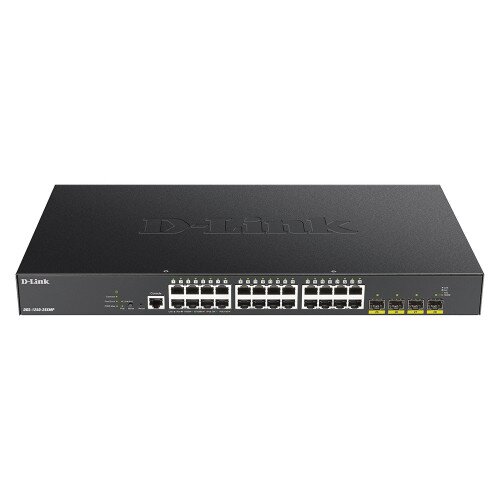

D-Link 28-Port 10-Gigabit Smart Managed PoE Switch Available Now

By: D-Link

Model: DGS-1250-28XMP-6KV

Sku: D1QZNX0WU0

Availability: Out of stock New

Availability: Out of stock

  • Switch Capacity: 128 Gbps
  • Max. Packet Forwarding Rate: 95.24 Mpps
  • Maximum Heat Dissipation: PoE ON: 1551.891 BTU/hr (100 V)1471.415 BTU/hr (240 V)PoE Off: 131.626 BTU/hr (100 V)133.331 BTU/hr (240 V)
  • Operation Temperature: -5 - 50°C
  • Storage Temperature: -20-70°C
  • Operation Humidity: 0% - 95% RH
  • Storage Humidity: 0% ~ 95% RH
  • Operating Altitude: 1500 meters
  • Maximum Power Consumption: PoE ON: 455.1 W/100 V431.5 W/240 VPoE Off: 38.6 W/100 V39.1 W/240 V
  • MTBF: 463,430.16 hours
  • Power Input: 100-240 VAC
  • CPU Speed: 800MHz
  • DRAM Size: DDR3 2G
  • Flash Memory Size: 64MB
  • Packet Buffer Size: 12MBits
  • FAN: Yes
  • PoE Budget: 370W
  • 10G SFP + ports: 4
  • 10/100/1000 BASE-T PoE: 24
  • USB Port: No
  • Number of Module Slots: No
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Power and Value

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces, multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime

The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation. Full Command Line Interface (CLI) functionality enables remote configuration without need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration

The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

High PoE Budget (370W)

The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment with IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch’s management interface, an administrator can control various PoE functions.

  • 24 x 10/100/1000BASE-T Gigabit Ethernet PoE ports
  • 4 x 10G SFP+ ports for high speed uplink connections
  • Robust 370W PoE Power Budget
  • Lite L3 Static Routing for increased network efficiency
  • Advanced security features such as Access Control List, IMPB, and 802.1X Authentication enhance network security and help protect the network
  • Dual Image & Dual Configuration for reduced downtime
  • Supports STP/RSTP/MSTP for fault tolerance
  • Full CLI for for easy management
  • QoS for prioritization of critical network traffic
  • 6kV Surge Protection on all Gigabit Ethernet access ports

In the Box

  • D-Link 28-Port 10-Gigabit Smart Managed PoE Switch
  • User Manual
