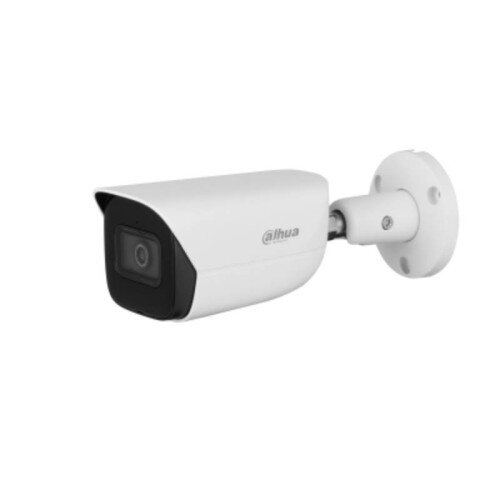

Buy Dahua 5 MP IR Fixed-focal Bullet WizSense Network Camera - White Now

Model: IPC-HFW3541E-S-S2-WH

Availability: Out of stock

5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.

Stock Request Notify When Available

Camera

Image Sensor: 1/2.7" CMOS
Max. Resolution: 2960 (H) × 1668 (V)
ROM: 128 MB
RAM: 512 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.005 lux F1.4 (Color, 30 IRE), 0.0005 lux F1.4 (B/W, 30 IRE), 0 lux (Illuminator on),
S/N Ratio: (56 dB
Illumination Distance: Up to 50 m (164.04 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 1 (IR LED)
Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm; 3.6 mm; 6 mm
Max. Aperture: F1.4
Field of View: 2.8 mm: Horizontal: 111°; Vertical: 58°; Diagonal: 132°, 3.6 mm: Horizontal: 92°; Vertical:45°; Diagonal: 110°, 6 mm: Horizontal: 57°; Vertical: 30°; Diagonal: 65°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft), 3.6 mm: 1.7 m (18.37 ft), 6 mm: 3.3 m (10.83 ft)
DORI Distance: Lens: 2.8 mm, 3.6 mm, 6 mm, Detect: 63.6 m (208.66 ft), 85.4 m (280.18 ft), 124.0 m (406.82 ft), Observe: 25.4 m (83.33 ft), 34.2 m (112.20 ft), 49.6 m (162.73 ft), Recognize: 12.7 m (41.67 ft), 17.1 m (56.10 ft), 24.8 m (81.36 ft), Identify: 6.4 m (21.00 ft), 8.5 m (27.89 ft), 12.4 m (40.68 ft), DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec: Smart H.265+, Smart H.264+
AI Coding: AI H.265, AI H.264
Video Frame Rate: Main stream: 2880 × 1620 @ (1–20) fps /, 2960 × 1668 @ (1–20) fps /, 2688 × 1520 @ (1–25/30 fps), Sub stream 1: 704 × 576 @ (1–25 fps)/, 704 × 480 @ (1–30 fps), Sub stream 2: 1920 × 1080 @ (1–25/30 fps), *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability: 3 streams
Resolution; 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
Day/Night: Auto (ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
Scene Self-adaptation (SSA): Yes
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto, Noise Reduction: 3D NR, Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas), Defog: Yes, AFSA: Yes
Image Rotation: 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower), Mirror: Yes, Privacy Masking: 4 areas

Alarm Event - AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception, -S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network Port: RJ-45 (10/100 Base-T), SDK and API: Yes
Network Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host: 20 (Total bandwidth: 64 M), Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser: IE: IE11, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS, Mobile Client: iOS; Android

Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power Supply: 12 VDC/PoE (802.3af)
Power Consumption: Basic: 3.1 W (12 VDC); 3.7 W (PoE), Max. (WDR+IR intensity+Intelligence on): 5.3 W (12 VDC); 6.5 W (PoE)
