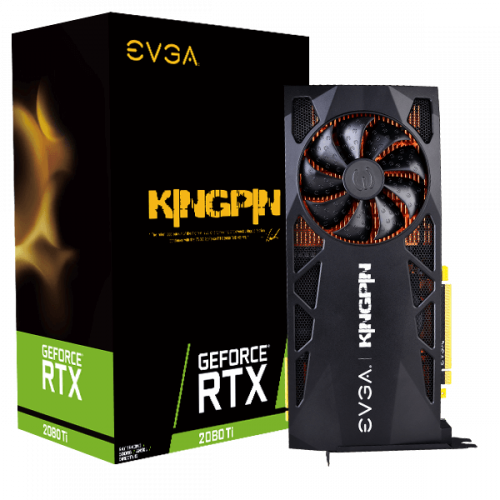

“The relentless pursuit of the highest level of engineering and overclocking perfection continues with the EVGA GeForce RTX 2080 Ti K|NGP|N.”- Vince "K|NGP|N" Lucido
- The KINGPIN is sporting a 240 mm Hybrid cooling system, a first for any EVGA card
- Custom cooling designed in cooperation with Vince “K|NGP|N” Lucido
- 16+3 Phase VRM with extreme overclocking in mind
- 12 temperature sensors for comprehensive monitoring solution
- Built in OLED to show real-time card stats
The all-new 240 mm Hybrid Cooler comes with a new generation Asetek Gen 6 pump, three PWM cooling fans, a copper + modular VRM heatsink and a full copper direct die GPU cold plate for the lowest temps of any KINGPIN card.
The GeForce RTX 2080 Ti is the pinnacle of the GeForce® line-up and the K|NGP|N is the flagship of the EVGA range. The card is designed for the highest overclocking performance.
First for any EVGA GPU, a built in OLED display shows you all the card stats you could want, and hardware level monitoring ensures accurate information. Monitor real-time Voltages, Temperatures, Clocks, Power Consumption, GPU Utilization and more!
Designed in cooperation with Illya “TiN” Tsemenko, the new K|NGP|N PCB is 12 layers deep, has a triple BIOS with OC and LN2 specific settings, as well as smart onboard diagnostics to ensure that you can aim for record breaking overclocks with stability & confidence.
16+3 Phase VRM with extreme overclocking in mind. With integrated Smart PowerStages , each capable of supplying up to 60 amperes of continuous current, we believe that the K|NGP|N has a powerful VRM matching or exceeding the best GeForce RTX 2080 Ti GPUs available.
Triple 8-pin +12V PCIe power connectors can supply that mega-VRM with power over 520W. Located on the leading edge of the PCB allows for easy cable management and a clean look.
Built in Probe-It & EVBot headers allow for real-time monitoring & tuning of power settings. Push the K|NGP|N to new levels with precise power and frequency control.
Designed with open loop enthusiasts in mind, the new K|NGP|N was built to accept a custom built EVGA Hydro Copper block and aftermarket cooling solutions. This open loop version will retain the OLED functionality.
11GB of Samsung 14GHz GDDR6 memory
The all new cooler is comprised for three fans and a new AIO
- A 100mm HBM fan mounted to a full metal heatsink
- Dual 120x120x25mm PWM fans w/ ~69.5 CFM rating each
- Asetek Gen 6 pump with direct die contact via a copper cold plate
- 240mm Radiator with 30mm thickness
- Modular VRM heatsink, allowing aftermarket GPU coolers
- All metal cooler shroud and backplate
PCB designed in cooperation with Illya “TiN” Tsemenko
- Custom low-loss 12-layer PCB
- Probe-It header to allow for real-time monitoring GPU voltages by DMM
- EVBot header allows for real-time power settings tuning
- Triple BIOS for Normal, OC and Extreme LN2 use profiles
- Array of 12 onboard iCX temperature sensors
- Integrated voltage monitoring with real-time OLED readout
- Diagnostic LEDs & Self-diagnostics for correct power and GPU operation
16+3 Phase VRM with Extreme overclocking in mind
- Dual MP2888A controllers
- 16 – MP86956 – 60 ampere Smart PowerStages for the GPU
- 3 – MP86956 – 60 ampere Smart PowerStages for the Memory
- PEXVDD single-phase digital control VRM
- Triple 8-pin +12V PCIe power connectors located on the edge for clean cabling
- Over 520 W TDP Rating with bundled VBIOS
Shroud OLED display
- Built into the shroud is a OLED Display to show real-time card stats and user messages
- Shows real-time Voltages, Temperatures, Clocks, Power Consumption, and GPU Utilization
- Show self-test and diagnostic results
- Monitor GPU junction temperature in wide range from -64 °C to +105 °C
- Optional LN2 benching kit with OLED bracket for enthusiast use with 3rd party cooling solution.
EVGA Hydro Copper full-cover waterblock option
- Bundled additional OLED bracket module for Hydro Copper and real-time benchmark monitoring
- Video out ports designed for use with single slot brackets
Other features
- Fan header allows for PWM control of attached fan/s in EVGA Precision X1
- VirtualLink with USB Type-C I/O connector
