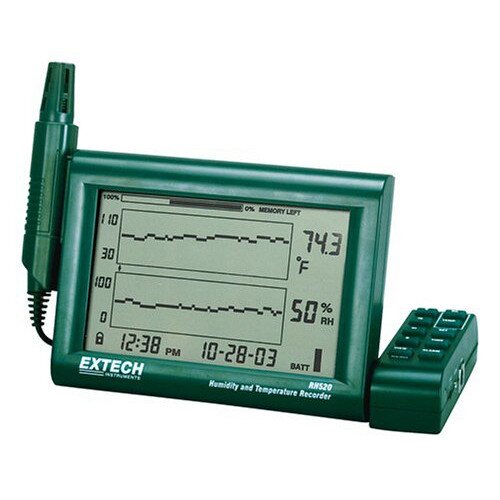

Extech RH520A-220: Humidity+Temperature Chart Recorder with Detachable Probe (220V)
Extech RH520A-220: Humidity+Temperature Chart Recorder with Detachable Probe (220V) Display Gallery Item 1

Buy Extech RH520A-220: Humidity+Temperature Chart Recorder with Detachable Probe (220V) Now

By: Extech

Model: RH520A-220

Sku: CE6I2BIKUM

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Relative Humidity Range: 10.0 to 95.0%
  • Temperature Range: -20.0 to 140.0?F (-28.0 to 60.0?C)
  • Accuracy: ?3% Relative Humidity; ?1.8?F/?1?C
  • Simultaneous numerical and graphical display of Humidity and Temperature readings, plus Time and Date
  • Measures Humidity (10 to 95%RH) and Temperature (-20.0?F to 140.0?F) plus calculates Dew Point
  • Basic accuracy 3%RH, 1.8?F/1?C
  • Large dual graphical LCD displays with adjustable vertical and horizontal TAC resolution
  • Internal memory records up to 49,000 data points and can be transferred to a PC via RS-232 serial port for further data analysis
  • LCD indicates percentage of memory remaining
  • Comes with 220V AC power supply
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

Graphical datalogger for Humidity/Temperature measurements and Dew Point calculation

This paperless chart recorder provides simultaneous digital and graphical display of relative humidity and temperature. The display also shows dew point, date and time and Min/Max measurements. Stored readings can be recalled on the display or downloaded to a PC to obtain a permanent record. Provisions for wall mounting or the control panel swivels to act as a desk stand. The user can set audible and visual alarms with High and Low limits for humidity and temperature. LabView software calculates Wet Bulb and Grains per Pound (GPP).

In the Box

  • Extech RH520A-220: Humidity+Temperature Chart Recorder with Detachable Probe (220V)
  • Detachable sensor probe with 1 meter cable
  • RS-232 cable with USB adapter
  • 220 VAC adapter
  • 3 x AA batteries
