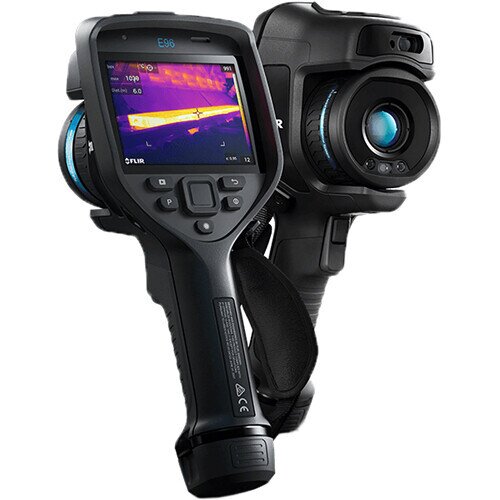

FLIR E96 Advanced Thermal Imaging Camera with 24° Lens Available Now

By: FLIR

Model: 90202-0101

Sku: 4XTAH1MKM2

AED 76,769

& FREE Standard Delivery

Availability: In Stock In Stock

New

Quantity:
  • Add to Wishlist
  • Add to Compare

The Flir E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The Flir E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a Flir FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard Flir Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. Flir Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.

Enhanced Resolution, Faster Inspections

Outstanding Thermal Imagery

The 640 × 480 thermal resolution plus Flir UltraMax® and MSX® image enhancement ensure the E96 produces the most vibrant, easiest-to-interpret images in its class.

One lens, two fields of view

Pair your Exx-Series camera with a Flir FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.

Streamlined Reporting

Onboard integration with Flir routing software*, automatic image upload directly to the Flir Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)

Highlighted

  • IR Resolution: 640 × 480 pixels
  • Thermal Sensitivity / NETD: 30 mK, 42° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 40 mK, 24° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 50 mK, 14° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 30 mK, 80° at 30°C (86°F)
  • Accuracy: ±2°C (±3.6°F) or 2% of the reading
  • Field of View (FOV): FLIR E96 42°: 42° × 32°
  • Field of View (FOV): FLIR E96 24°: 24° × 18°
  • Field of View (FOV): FLIR E96 14°: 14° × 10°
  • Field of View (FOV): FLIR E96 80°: 80° × 63°
  • Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens is in use
  • Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
  • Storage Media: Removable SD card

Imaging & Optical

  • Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
  • Detector Type and Pitch: Uncooled microbolometer, 12 µm
  • Digital Camera: 5 MP, with built-in LED photo/video lamp; disabled when 80° lens is in use
  • Digital Zoom: 1–8× continuous
  • f-number: FLIR E96 14°: 1.5
  • f-number: FLIR E96 24° / FLIR E96 80°: 1.3
  • f-number: FLIR E96 42°: 1.1
  • Field of View: 42° × 32°, 24° × 18°, 14° × 10°
  • Field of View (FOV): FLIR E96 42°: 42° × 32°
  • Field of View (FOV): FLIR E96 24°: 24° × 18°
  • Field of View (FOV): FLIR E96 14°: 14° × 10°
  • Field of View (FOV): FLIR E96 80°: 80° × 63°
  • Focal Length: 42°: 10 mm (0.39 in)
  • Focal Length: 24°: 17 mm (0.67 in)
  • Focal Length: 14°: 29 mm (1.41 in)
  • Focal Length: 80°: 5 mm (0.19 in)
  • Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
  • Image Frequency: 30 Hz
  • IR Resolution: 640 × 480 pixels
  • Lens Identification: Automatic
  • Minimum Focus Distance: 0.15 m (42°)
  • Minimum Focus Distance: 0.15 m (24°)
  • Minimum Focus Distance: 1.0 m (14°)
  • Minimum Focus Distance with MSX: 42°: 0.65 m (1.98 ft)
  • Minimum Focus Distance with MSX: 24°: 0.5 m (1.64 ft)
  • Minimum Focus Distance with MSX: 14°: 1.0 m (3.28 ft)
  • Non-radiometric IR Video Streaming: H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi
  • Picture-in-Picture: Resizable and movable
  • Radiometric IR Video Recording: Real-time radiometric recording (.csq)
  • Radiometric IR Video Streaming: Yes, over UVC
  • Spatial Resolution (IFOV): 80°: 2.6 mrad/pixel
  • Spatial Resolution (IFOV): 42°: 1.20 mrad/pixel
  • Spatial Resolution (IFOV): 24°: 0.66 mrad/pixel
  • Spatial Resolution (IFOV): 14°: 0.38 mrad/pixel
  • Spectral Range: 7.5–14 µm
  • Thermal Sensitivity / NETD: 30 mK, 42° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 40 mK, 24° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 50 mK, 14° at 30°C (86°F)
  • Thermal Sensitivity / NETD: 30 mK, 80° at 30°C (86°F)
  • UltraMax: Yes
  • Viewfinder: No

Measurement & Analysis

  • Accuracy: ±2°C (±3.6°F) or 2% of the reading
  • Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
  • Object Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
  • Spot Meter: 3 ea. in live mode

User Interface

  • Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
  • Text: Predefined list or touchscreen keyboard
  • Voice: 60 sec. recording added to still images or video via built-in microphone (speaker included) or via Bluetooth

Communication & Data Storage

  • Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
  • Image File Format: Standard JPEG with measurement data included (Infrared-only mode)
  • Image Storage Mode: Infrared, Visual, MSX, Picture-in-Picture, Gallery
  • METERLiNK: Yes
  • Storage Media: Removable SD card
  • Time Lapse: 10 seconds to 24 hours (infrared)
  • Video Out: DisplayPort over USB Type-C

Power

  • Battery Operating Time: (2.5 hours at 25°C (68°F) under typical use
  • Battery Type: Rechargeable Li-ion battery

Environmental & Certifications

  • Operating Temperature Range: -15 to 50°C (5 to 122°F)
  • Safety: EN/UL/CSA/PSE 60950-1
  • Storage Temperature Range: -40 to 70°C (-40 to 158°F)

In the Box

  • FLIR E96 Advanced Thermal Imaging Camera with 24° Lens
  • 2 × Battery
  • Battery Charger
  • Power Supply for Battery Charger
  • Power Supply for 15W / 3A
  • 8GB SD Card
  • USB-A to USB-C Cable (3.3')
  • USB-C to USB-C Cable (3.3')
  • USB-C to HDMI Adapter
  • Front Protection
  • Front Protection Fastener
  • Hand Strap
  • Hand Strap Bracket, Left
  • Hand Strap Bracket, Right
  • Torx T10 Wrench with Screws
  • Lanyard Strap
  • Lens Cap
  • Lens Cap Strap
  • Wrist Strap
  • Carabiner Hook
  • FLIR Thermal Studio Starter
  • Hard Transport Case
