Fluke Networks 1587 FC Insulation Multimeter
Fluke Networks 1587 FC Insulation Multimeter Display Gallery Item 1
Fluke Networks 1587 FC Insulation Multimeter - 2 Display Gallery Item 2

Fluke Networks 1587 FC Insulation Multimeter - Best Deals Online!

By: Fluke Networks

Model: 4691215

Sku: 1A57XZZ5QH

Be the first to review this product

Sign up for price alert

AED 5,099

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • DC and AC Current Measurement: AC 45 Hz to 1000 Hz: Range: 400 mA, Resolution: 0.1 mA, Accuracy ±(% of Rdg+Counts): ±(1.5% + 2), Burden voltage (Typical): 2 mV/mA, Range: 60 mA , Resolution: 0.01 mA , Accuracy ±(% of Rdg+Counts): ±(1.5% + 2), Burden voltage (Typical): 2 mV/mA
  • DC: Range: 400 mA Resolution: 0.1 mA Accuracy ±(% of Rdg+Counts): ±(0.2% + 2) Burden voltage (Typical): 2 mV/mA Range: 60 mA Resolution: 0.01 mA Accuracy ±(% of Rdg+Counts): ±(0.2% + 2) Burden voltage (Typical): 2 mV/mA Overload: 600 mA for 2 minutes maximum Fuse protection for mA input: 0.44 mA, 1000 V, IR 10 kA AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input
  • Diode Test: Diode test indication: Display voltage drop: 0.6 V at1.0 mA nominal test current:, Accuracy: ±(2% + 3)
  • Continuity Test: Continuity indication: Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω, Open circuit voltage: (8.0 V, Short circuit current: 1.0 mA typical, Overload protection: 1000 V rms, Response time: )1 m sec
  • Measurement range: 0.01 MΩ to 2 GΩ
  • Test voltages: 50, 100, 250, 500, 1000 V
  • Test voltage accuracy: +20%, -0%
  • Short-circuit test current: 1 mA nominal
  • Auto discharge: Discharge time (0.5 second for C = 1 μF or less
  • Live circuit detection: Inhibit test if terminal voltage ) 30 V prior to initialization of test
  • Maximum capacitive load: Operable with up to 1 μF load
  • Maximum voltage applied to any terminal and common: 1000 V
  • Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
  • Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures (18 °C or )28 °C ((64 °F or )82 °F)
  • Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
  • Radio frequency communication: 2.4 GHz ISM Band
  • Radio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE
Quantity:
  • Add to Wishlist
  • Add to Compare

Keep yourself safe. Find hidden problems faster. Put the paperwork down.

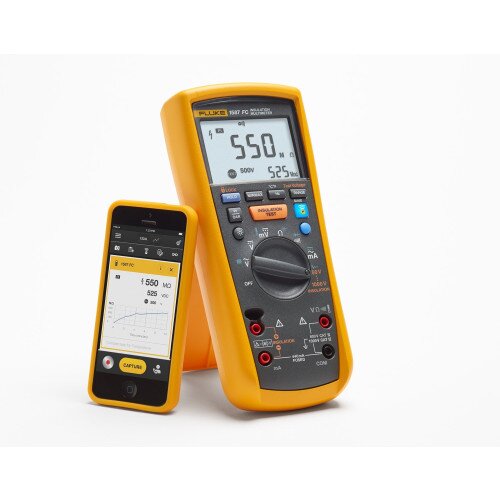

Fluke Connect + Fluke's 1587 FC Insulation Multimeter helps you identify tough problems, fix, and wirelessly communicate your work quickly and easily - all at a safe distance.

Add diagnostics with Fluke Connect

The Fluke 1587 FC is Fluke Connect-enabled so you can download the free Fluke Connect® Measurements app to your smartphone and gain additional functions, including:

  • Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely.
  • Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone.
  • Quickly find problems by saving and comparing measurements over time on a wireless device.
  • PI/DAR timed ratio tests with TrendIt graphs to identify moisture and contaminated insulation problems faster
  • Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
  • Temperature compensation to establish accurate baselines and relevant historical comparisons
  • Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect® Assets (sold separately)
  • Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected
  • Supports historical tracking and asset trending of assets to identify degradation over time with Fluke Connect® Assets (sold separately)
  • Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
  • Includes auto-discharge of capacitive voltage for added user protection
  • Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity
  • Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading
  • Automatically powers off to save battery power

In the Box

  • Fluke Networks 1587 FC Insulation Multimeter
  • Remote probe
  • Test leads
  • Alligator clips
  • K-type thermocouple
  • Soft case
  • User documentation
