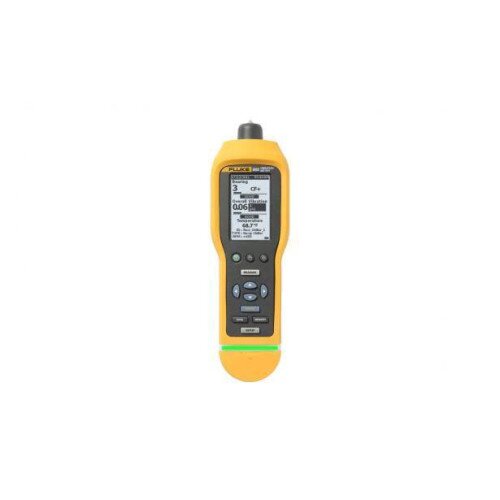

Fluke Networks 805 Vibration Meter
Fluke Networks 805 Vibration Meter Display Gallery Item 1
Fluke Networks 805 Vibration Meter - 2 Display Gallery Item 2
Fluke Networks 805 Vibration Meter - 3 Display Gallery Item 3

Fluke Networks 805 Vibration Meter - Best Deals Online!

By: Fluke Networks

Model: 4094385

Sku: HXFS9L8A3P

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Low frequency range (overall measurement): 10 Hz to 1,000 Hz
  • High frequency range (CF+ measurement): 4,000 Hz to 20,000 Hz
  • Severity levels: Good, satisfactory, unsatisfactory, unacceptable
  • Vibration limit: 50 g peak (100 g peak-peak)
  • A/D converter: 16-bit
  • Signal to noise ratio: 80 dB
  • Sampling rate: Low frequency , 20,000 Hz, High frequency, 80,000 Hz
  • Real time clock backup: Coin battery
  • Sensitivity: 100 mV g ±10%
  • Measurement range: 0.01 g to 50 g
  • Low frequency range (overall measurement): 10 Hz to 1,000 Hz
  • High frequency range: 4,000 Hz to 20,000 Hz
  • Resolution: 0.01 g
  • Accuracy: At 100 Hz ±5% of measured value
  • Acceleration: g, m/sec
  • Velocity: in/sec, mm/sec
  • Displacement: mils, mm
  • Range: -20°C to 200°C (-4°F to 392°F)
  • Accuracy: ±2°C (4°F)
  • Focal length: Fixed, at ~3.8 cm (1.5 in)
  • Frequency range: 10 Hz to 1,000 Hz
  • Bias voltage (to supply power): 20 VDC to 22 VDC
  • Bias current (to supply power): Maximum 5 mA
  • External interfaces: USB 2.0 (full speed) communication
  • Data capacity: Database on internal flash memory
  • Upgrade: Through USB
  • Memory: Up to 3,500 measurements
  • Operating temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage temperature: -30°C to 80°C (-22°F to 176°F)
  • Operating humidity: 10% to 95% RH (non-condensing)
  • Operating/storage altitude: Sea level to 3,048 meters (10,000 feet)
  • Vibration limit: 500 g peak
  • Battery type: AA (2) Lithium Iron Disulfide
  • Battery life: 250 measurements
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Reliable, Repeatable, Accurate Way to Check Bearings and Overall Vibration

Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.

What Makes the 805 the Best Choice

  • A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture
  • A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings
  • A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable)
  • Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types
  • Straight-forward user interface that minimizes the user inputs to RPM range and equipment type

Other useful features:

  • Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
  • Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
  • Compares vibration levels with ISO-10816 severity scales
  • Allows you to view trending in Microsoft Excel using pre-built templates
  • Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
  • Measures temperature with Spot IR Sensor to increase diagnostic capabilities
  • Holds and saves up to 3,500 measurements in on-board memory
  • Provides external accelerometer support for hard to reach locations
  • Allows you to export data via USB
  • Provides audio output for listening to bearing tones directly
  • Features built-in flashlight for viewing measurement locations in dark areas
  • Provides large high-resolution display for easy navigation and viewing

In the Box

  • Fluke Networks 805 Vibration Meter
  • USB cable
  • Storage case
  • Belt holster
  • Quick reference guide
  • CD-ROM
  • Two AA batteries
