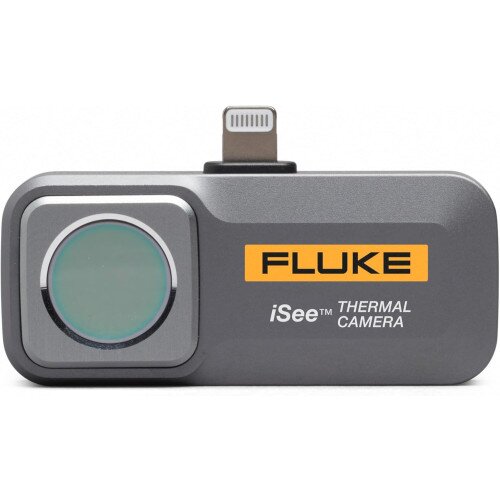

Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning
Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning Display Gallery Item 1
Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning - 2 Display Gallery Item 2
Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning - 3 Display Gallery Item 3
Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning - 4 Display Gallery Item 4

Buy Fluke Networks iSee TC01B 25Hz Mobile Thermal Camera - iOS Lightning Now

By: Fluke Networks

Sku: 617XPOJJVZ

Be the first to review this product

Sign up for price alert

AED 2,749

& FREE Standard Delivery

AED 2,749

& FREE Standard Delivery

AED 2,749

& FREE Standard Delivery

AED 2,749

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
  • Up to 550 °C (1022°F), suitable to use in many applications
  • 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
  • Customize image view with more than 10 standard or custom color palettes
  • IR resolution: 256 x 192
  • Pixel size: 12 μm
  • Temperature range: -20 °C to 550 °C/-4 °F to 1022 °F
  • Temperature accuracy: ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater / (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)
  • Temperature measurement distance: 0.25 m to 5 m / (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)
  • Frame rate: 25 Hz
  • Warm-up time: 1 minute
  • Focal length: Fixed focal length: 3.2 mm
  • Shutter mode: Internal
  • Thermal sensitivity (NETD): 50 mK
  • Spectral range: 8 to 14 μm
  • Field of view (H x V): 56° x 42°
  • Spatial resolution: 3.81 mrad
  • USB interface: Lightning
  • Compatible system: iOS
  • Operating temperature: 0 ℃ to 40 ℃/32 °F to 104 °F
  • Storage temperature: -30 ℃ to 60 ℃/–22 °F to 140 °F
  • Operating humidity: 10 % to 90 % RH, non-condensing
  • Power consumption: 200 mW (Typical)
  • Drop test: 1 m/3.3 ft
  • Ingress protection: IEC 60529: IP56
  • Operating altitude: 2 000 m/6 562 ft
  • Storage altitude: 12 000 m/39 370 ft
Quantity:
  • Add to Wishlist
  • Add to Compare

Experience fast and easy inspections on the go with Fluke iSee Mobile Thermal Camera. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Detailed image quality comparable to professional thermal imagers

  • 256 x 192 pixels, detailed image quality
  • -10 to 550 °C (14 to 1022 °F) range, covering wide applications
  • 50 mk (0.05 °C) thermal sensitivity for fine screening
  • ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
  • 25 Hz frame rate, smooth video without lag
  • More than 10 standard and custom color palettes to achieve a variety of personalized images

Full temperature range analysis

  • Real-time high and low-temperature capture, without missing any details
  • Adjustable emissivity to cope with different materials
  • Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
  • Real-time temperature alarm, timely response, and handling
  • Unattended automatic time-lapse photography
  • Infrared and visible light image comparison for locating, comparing, and archiving

Real-time image sharing, communication without barriers

  • Real-time image and video sharing and management, fast and efficient communication
  • It is easy to add image annotations, and communication without barriers

Small and portable, it takes a second to get started

  • The iSeeTM is made of high-quality aluminum material for the airway, with uniquely treated and laser-etched surface
  • Up to 1-meter drop test, IP56 (TC01B/TC01C)/IP54 (TC01A) ingress protection for Fluke durability
  • Optimized Fluke iSeeTM application interfaces and menus with professional operating experience make it easy to access all functions
  • The TC01B features a Lightning interface, while the TC01C has a Type-C interface. Both devices are compatible with iPhone and iPad*, fully supporting iOS and have obtained Apple MFI Certification.

In the Box

  • Fluke Networks iSee Mobile Thermal Camera
  • User's Manual
